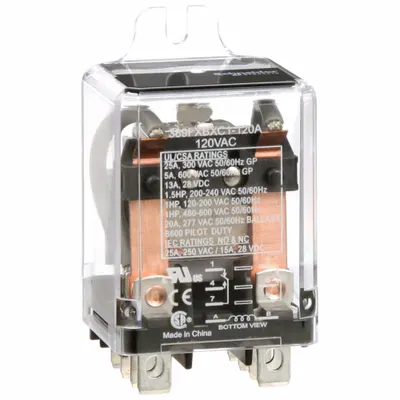

SCHNEIDER Enclosed Power Relay: Surface (Side Flange) Mounted, 25 A Current Rating
The SCHNEIDER 389F Power Series Enclosed Power Relay is a surface (side flange) mounted relay with a DPDT configuration. It features an octal base type and quick-connect electrical connection, with a current rating…
SKU 3G-OTH-37027
Also listed as: 389FXBXC1120A · 389FXBXC1 120A
Local availability & support — Singapore
- Local office
- 20 Woodlands Link #09-05, Singapore 738733
- Phone
- +65 8878 8355
- Delivery
- Same-day or next-business-day delivery within Singapore for in-stock items; 7–14 days for factory-order parts from Europe.
- Payment
- Invoicing in SGD. PayNow, bank transfer, and corporate PO accepted.
- Ships to
- Singapore
Need installation or engineering help?
Ask a question
Product Description
The SCHNEIDER 389F Power Series Enclosed Power Relay is a surface (side flange) mounted relay with a DPDT configuration. It features an octal base type and quick-connect electrical connection, with a current rating of 25 A and an operating current of 22 A at 120V AC (Full Load). The relay operates at 120V AC.
Frequently Asked Questions
What is the SCHNEIDER 389F Power Series enclosed power relay used for?
The SCHNEIDER 389F Power Series enclosed power relay is used for switching high-current industrial loads such as motors, heaters, and lighting systems. Its DPDT configuration and 25 A rating make it suitable for control panels and automation equipment requiring reliable power switching.
What are the specifications of the SCHNEIDER 389FXBXC1-120A relay?
The SCHNEIDER 389FXBXC1-120A is a surface (side flange) mounted enclosed power relay from the 389F Power Series. It has a DPDT contact configuration, octal base type, quick-connect electrical connection, a current rating of 25 A, and an operating current of 22 A at 120V AC (Full Load).
Where to buy the SCHNEIDER 389FXBXC1-120A relay worldwide?
You can source the SCHNEIDER 389FXBXC1-120A relay worldwide through 3G Electric, a global industrial equipment distributor. We handle full logistics, customs clearance, and delivery to your location. Contact us for availability and lead time.
How to install the SCHNEIDER 389F Power Series relay?
Mount the relay securely on a flat surface using the side flange holes. Connect wires to the quick-connect terminals per the wiring diagram, ensuring the coil voltage matches 120V AC. Use an octal socket for base connections. Always de-energize the circuit before installation.
Used in
Common applications for SCHNEIDERSCHNEIDER Products
3G Electric supplies SCHNEIDER surface-mounted relays. We supply genuine products with in-stock availability on common SKUs, technical documentation, commissioning support, and warranty service — worldwide.
