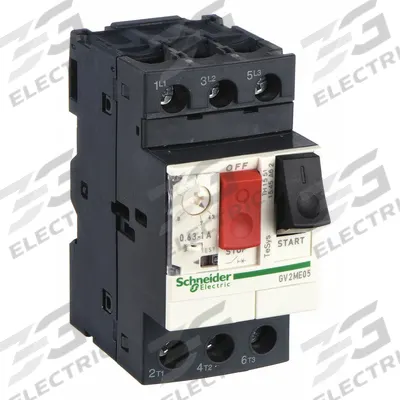

SCHNEIDER Manual Motor Starter: Non-Reversing, 3 Poles, 1 A, Thermal Protection - Non-Reversing Starters with Thermal Overloads
SCHNEIDERNon-Reversing Starters with Thermal Overloads

SCHNEIDER Manual Motor Starter: Non-Reversing, 3 Poles, 1 A, Thermal Protection

The SCHNEIDER GV2ME05 is a non-reversing manual motor starter with integrated thermal overload protection, designed for three-pole applications up to 1 A. It features a 45mm frame width and a maximum voltage rating…

SKU 3G-OTH-40735

Brand
SCHNEIDER
Item
Manual Motor Starter: Non-Reversing, 3 Poles, 1 A, Thermal Protection
Category
Non-Reversing Starters with Thermal Overloads
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

SCHNEIDER
Manufacturer Part Number
GV2ME05
Type
1 A, Thermal Protection, Push Button
Poles
3
Frame Size (Width)
45mm
Maximum Voltage Rating
690V AC
Thermal Units Required
None (Starter Includes Integrated Thermal Units)
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

SCHNEIDER Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The SCHNEIDER GV2ME05 is a non-reversing manual motor starter with integrated thermal overload protection, designed for three-pole applications up to 1 A. It features a 45mm frame width and a maximum voltage rating of 690V AC, with push-button operation. This starter includes built-in thermal units, eliminating the need for separate thermal overload relays.

Frequently Asked Questions

What is the SCHNEIDER GV2ME05 manual motor starter used for?

The SCHNEIDER GV2ME05 is a non-reversing manual motor starter with integrated thermal overload protection, used to protect three-phase motors up to 1 A in industrial applications such as conveyors, pumps, and compressors. It provides push-button on/off control and overload protection in a compact 45mm frame.

What are the specifications of the SCHNEIDER GV2ME05?

The SCHNEIDER GV2ME05 is a 3-pole non-reversing manual motor starter rated for 1 A and 690V AC. It includes integrated thermal units, so no separate overload relay is needed. The frame width is 45mm, and operation is via push button. The manufacturer part number is GV2ME05.

Where to buy the SCHNEIDER GV2ME05 in worldwide?

3G Electric supplies the SCHNEIDER GV2ME05 manual motor starter to customers worldwide. As a global industrial solutions provider, we handle full logistics, customs clearance, and delivery to your location. Contact us for pricing and lead time on this part.

How to select the correct SCHNEIDER manual motor starter for a motor?

To select the correct SCHNEIDER manual motor starter like the GV2ME05, match the starter's rated current (1 A for this model) to the motor's full-load current. Ensure the voltage rating (690V AC) and pole count (3) meet your system requirements. The integrated thermal overload eliminates the need for a separate relay.
