SCHNEIDER Selector Switch: 30 mm Panel Mounting Size, 3 Positions, Extended Lever - Selector Switches
SCHNEIDERSelector Switches

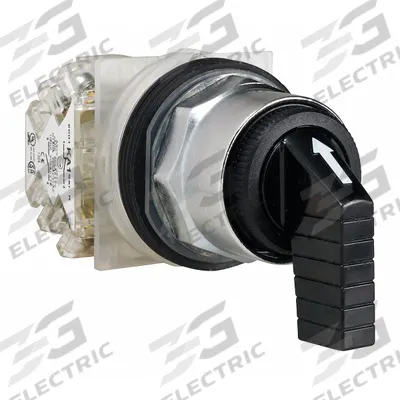

SCHNEIDER Selector Switch: 30 mm Panel Mounting Size, 3 Positions, Extended Lever

The SCHNEIDER 9001KS53FBH13 is a 30 mm panel-mounting selector switch from the 9001K series, featuring a long-handled knob with a polycarbonate operator head and a metallic bezel. This non-illuminated switch offers…

SKU 3G-OTH-36236

Brand
SCHNEIDER
Item
Selector Switch: 30 mm Panel Mounting Size, 3 Positions, Extended Lever
Category
Selector Switches
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

SCHNEIDER
Manufacturer Part Number
9001KS53FBH13
Series
9001K
Type
Extended Lever, SPDT, Metallic
Cam
C
Action
Momentary/Maintained/Momentary
Positions
3
AC Contact Rating
1.2 A @ 600 V
DC Contact Rating
0.27 A @ 250 V
Operator Head Type
Long-Handled Knob
Operator Illumination
Non-Illuminated
Operator Head Material
Polycarbonate
Switch Bezel Material Type
Metallic
Switch Function @ 1st Position
Momentary
Switch Function @ 2nd Position
Off
Switch Function @ 3rd Position
Momentary
Switch Function @ 4th Position
No Fourth Position
Hazardous Location Specification
Not Rated
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

SCHNEIDER Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The SCHNEIDER 9001KS53FBH13 is a 30 mm panel-mounting selector switch from the 9001K series, featuring a long-handled knob with a polycarbonate operator head and a metallic bezel. This non-illuminated switch offers three positions with a momentary/momentary action and an off center position, rated at 1.2 A @ 600 V AC and 0.27 A @ 250 V DC. It is not rated for hazardous locations.

Frequently Asked Questions

What is the SCHNEIDER 9001KS53FBH13 selector switch used for?

The SCHNEIDER 9001KS53FBH13 is a 30 mm panel-mounting selector switch used for industrial control applications requiring three-position selection with momentary/momentary action. It is suitable for machinery control panels, conveyor systems, and process equipment where a long-handled knob provides clear operator feedback.

What are the specifications of the SCHNEIDER 9001KS53FBH13 selector switch?

The SCHNEIDER 9001KS53FBH13 is a 30 mm panel-mounting selector switch with three positions (momentary/off/momentary), SPDT contacts, and a metallic bezel. It has an AC contact rating of 1.2 A @ 600 V and a DC contact rating of 0.27 A @ 250 V. The operator head is polycarbonate with a long-handled knob, non-illuminated, and not rated for hazardous locations.

Where to buy the SCHNEIDER 9001KS53FBH13 selector switch worldwide?

You can source the SCHNEIDER 9001KS53FBH13 selector switch worldwide through 3G Electric, a global industrial equipment distributor. We handle full logistics, customs clearance, and delivery to your location. Contact us for availability and lead time; we provide competitive pricing and reliable supply for this 9001K series switch.

How to install the SCHNEIDER 9001KS53FBH13 selector switch?

To install the SCHNEIDER 9001KS53FBH13, mount the switch in a 30 mm panel cutout, secure it with the provided locking ring, and wire the SPDT contacts according to your control circuit. Ensure power is off before installation. Use appropriate torque on terminals and verify the cam (C) matches your switching sequence. Follow standard industrial wiring practices.
