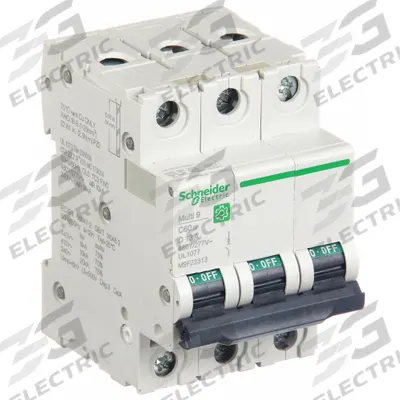

SCHNEIDER Supplementary Protector: 13 A Amps, 14kA at 240V AC, Screw Clamp - D-Curve, 3-Pole UL1077 DIN Rail-Mount Supplementary Protectors
SCHNEIDERD-Curve, 3-Pole UL1077 DIN Rail-Mount Supplementary Protectors

SCHNEIDER Supplementary Protector: 13 A Amps, 14kA at 240V AC, Screw Clamp

The SCHNEIDER IEC Supplementary Protector is a D-Curve, 3-Pole UL1077 DIN Rail-Mount Supplementary Protector rated at 13 A Amps. Part of the C60SP series (MPN M9F23313), it features a Max. AIR Rating of 14kA at 240V…

SKU 3G-OTH-20522

Brand
SCHNEIDER
Item
Supplementary Protector: 13 A Amps, 14kA at 240V AC, Screw Clamp
Category
D-Curve, 3-Pole UL1077 DIN Rail-Mount Supplementary Protectors
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

SCHNEIDER
Manufacturer Part Number
M9F23313
Series
C60SP
Type
14kA at 240V AC, Screw Clamp, C60SP
Max. AIR Rating
14kA at 240V AC
AC Voltage Rating
240/415/440V AC
DC Voltage Rating
Not Rated
Terminal Connection
Screw Clamp
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

SCHNEIDER Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The SCHNEIDER IEC Supplementary Protector is a D-Curve, 3-Pole UL1077 DIN Rail-Mount Supplementary Protector rated at 13 A Amps. Part of the C60SP series (MPN M9F23313), it features a Max. AIR Rating of 14kA at 240V AC and an AC Voltage Rating of 240/415/440V AC, with a Screw Clamp terminal connection. This device is not rated for DC voltage.

Frequently Asked Questions

What is the SCHNEIDER C60SP supplementary protector used for?

The SCHNEIDER C60SP M9F23313 is a D-Curve, 3-Pole UL1077 supplementary protector used to protect industrial control circuits, lighting, and small motor loads from overcurrent and short circuits. It mounts on a DIN rail and is suitable for AC systems up to 440V AC.

What are the specifications of the SCHNEIDER C60SP M9F23313?

The SCHNEIDER C60SP M9F23313 is rated at 13 A Amps with a D-Curve trip characteristic. It has a Max. AIR Rating of 14kA at 240V AC and an AC Voltage Rating of 240/415/440V AC. Terminal connection is Screw Clamp. It is not rated for DC voltage and is part of the C60SP series.

Where to buy SCHNEIDER C60SP supplementary protectors worldwide?

You can source the SCHNEIDER C60SP M9F23313 from 3G Electric, a global industrial equipment distributor. We handle full logistics, customs clearance, and delivery to worldwide locations. Contact us for availability and lead time.

How to install a SCHNEIDER C60SP DIN rail supplementary protector?

To install the SCHNEIDER C60SP, snap it onto a standard 35mm DIN rail. Ensure the circuit is de-energized. Connect wires to the Screw Clamp terminals per the torque specifications in the datasheet. Verify the D-Curve rating matches your load's inrush characteristics.

Used in

Common applications for SCHNEIDER
Motor starting in conveyor systems — Schneider Altistart ATS 22 soft starters (e.g., ATS22D17S6U) reduce inrush current.
Speed control for industrial pumps — Schneider Altivar ATV320 VFDs (e.g., ATV320U55N4W) provide variable flow regulation.
Machine safety interlocking — Schneider XPSUAF13AP safety relays monitor emergency stop circuits on assembly lines.
Panel-mounted control stations — Schneider XB5 flush push buttons (ZB5AA5) serve as start/stop operators in MCCs.
Heavy-duty motor switching — Schneider LC1G150LSEA contactors handle 150 A loads in compressor and crusher applications.
Emergency stop actuation — Schneider 9001K mushroom-head push buttons (9001KR25R) provide red, momentary stop functions.
