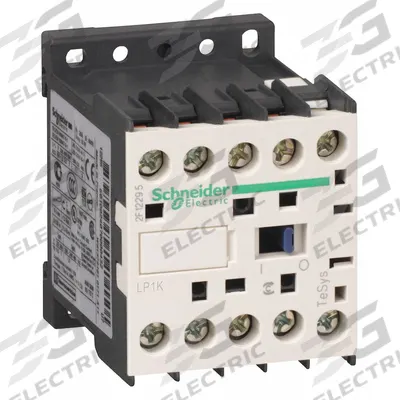

SCHNEIDER Magnetic Contactor: Non-Reversing, 3 Poles, 3NO Contacts, 12 A - Non-Reversing IEC Contactors
SCHNEIDERNon-Reversing IEC Contactors

SCHNEIDER Magnetic Contactor: Non-Reversing, 3 Poles, 3NO Contacts, 12 A

The SCHNEIDER IEC Magnetic Contactor: Non-Reversing (SKU 48N743, MPN LP1K1201BD) is a non-reversing IEC contactor with 3 poles and 3 normally open (NO) contacts. It is rated for 12 A and features a 24 V DC coil, with…

SKU 3G-OTH-40627

Brand
SCHNEIDER
Item
Magnetic Contactor: Non-Reversing, 3 Poles, 3NO Contacts, 12 A
Category
Non-Reversing IEC Contactors
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

SCHNEIDER
Manufacturer Part Number
LP1K1201BD
Type
12 A
Poles
3
DC Coil
24V
Contacts
3NO
Integrated Surge Suppression
No
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

SCHNEIDER Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The SCHNEIDER IEC Magnetic Contactor: Non-Reversing (SKU 48N743, MPN LP1K1201BD) is a non-reversing IEC contactor with 3 poles and 3 normally open (NO) contacts. It is rated for 12 A and features a 24 V DC coil, with no integrated surge suppression.

Frequently Asked Questions

What is the SCHNEIDER LP1K1201BD contactor used for?

The SCHNEIDER LP1K1201BD is a non-reversing IEC magnetic contactor used to switch electrical loads in industrial motor control, lighting, and HVAC applications. Its 3-pole, 3NO configuration with a 24 V DC coil suits automated systems requiring reliable on/off control.

What are the specifications of the SCHNEIDER LP1K1201BD contactor?

The SCHNEIDER LP1K1201BD is a non-reversing IEC contactor with 3 poles, 3 normally open contacts, rated 12 A, and a 24 V DC coil. It has no integrated surge suppression. The MPN is LP1K1201BD, and it is part of the SCHNEIDER TeSys range.

Where to buy the SCHNEIDER LP1K1201BD contactor worldwide?

3G Electric supplies the SCHNEIDER LP1K1201BD contactor worldwide. As a global industrial solutions provider, we handle full logistics, customs clearance, and delivery to your site. Contact us for pricing and lead time on this non-reversing IEC contactor.

How to select the right SCHNEIDER contactor for a 24 V DC control circuit?

For a 24 V DC control circuit, select a contactor with a matching coil voltage, like the SCHNEIDER LP1K1201BD. Verify the rated current (12 A) exceeds your load, and confirm pole count (3) and contact configuration (3NO) meet your switching needs. Always consult the manufacturer's data sheet.
