SCHNEIDER Melting Alloy Overload Relay: Thermal Protection, 3 Poles, NEMA Size 4 - NEMA Thermal Overload Relays
SCHNEIDERNEMA Thermal Overload Relays

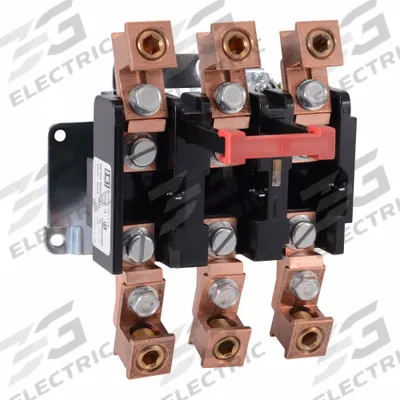

SCHNEIDER Melting Alloy Overload Relay: Thermal Protection, 3 Poles, NEMA Size 4

The SCHNEIDER Melting Alloy Overload Relay: Thermal Protection (MPN 9065SEO15) is a NEMA thermal overload relay for three-phase applications, rated for a maximum voltage of 600V AC. It uses melting alloy overload…

SKU 3G-OTH-41042

Brand
SCHNEIDER
Item
Melting Alloy Overload Relay: Thermal Protection, 3 Poles, NEMA Size 4
Category
NEMA Thermal Overload Relays
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

SCHNEIDER
Manufacturer Part Number
9065SEO15
Type
NEMA Size 4, 133 A
Phase
Three
Poles
3
Includes Thermal Units
No
Maximum Voltage Rating
600V AC
Thermal Units Required
3 Thermal (Heater) Units (Sold Separately)
Overload Protection Type
Melting Alloy
Compatible Contactor Series
9065 Motor Logic Solid State Overload Relays
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

SCHNEIDER Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The SCHNEIDER Melting Alloy Overload Relay: Thermal Protection (MPN 9065SEO15) is a NEMA thermal overload relay for three-phase applications, rated for a maximum voltage of 600V AC. It uses melting alloy overload protection and requires three thermal (heater) units, sold separately, for operation. This relay is compatible with the 9065 Motor Logic Solid State Overload Relays contactor series.
