SCHNEIDER Contact Block: 22 mm Panel Mounting Size, 2NO, Momentary - Contact Blocks
SCHNEIDERContact Blocks

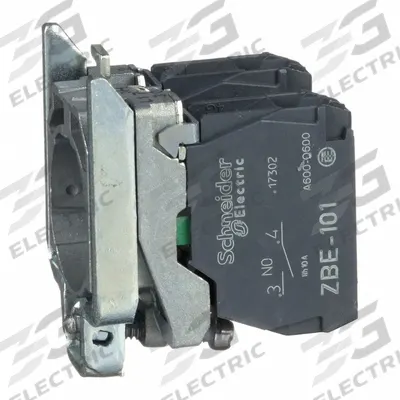

SCHNEIDER Contact Block: 22 mm Panel Mounting Size, 2NO, Momentary

The SCHNEIDER Contact Block is a momentary switch component from the ZB4 series, featuring 2NO contacts and a 22 mm panel mounting size. It uses screw clamp terminals for secure wiring connections. This contact block…

SKU 3G-OTH-33700

Brand
SCHNEIDER
Item
Contact Block: 22 mm Panel Mounting Size, 2NO, Momentary
Category
Contact Blocks
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

SCHNEIDER
Manufacturer Part Number
ZB4BZ103TQ
Switch Action
Momentary
Compatible with Series
ZB4
Terminal Connection Type
Screw Clamp Terminals
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

SCHNEIDER Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The SCHNEIDER Contact Block is a momentary switch component from the ZB4 series, featuring 2NO contacts and a 22 mm panel mounting size. It uses screw clamp terminals for secure wiring connections. This contact block is designed for integration with SCHNEIDER's ZB4 series pilot devices.

Frequently Asked Questions

What is the SCHNEIDER ZB4BZ103TQ contact block used for?

The SCHNEIDER ZB4BZ103TQ contact block is used as a momentary switching component in industrial control panels. It integrates with ZB4 series pilot devices for applications like machine start/stop stations, emergency stops, and indicator light control in manufacturing, processing, and automation environments.

What are the specifications of the SCHNEIDER ZB4BZ103TQ contact block?

The SCHNEIDER ZB4BZ103TQ contact block has a 22 mm panel mounting size, 2 normally open (2NO) contacts, and momentary switch action. It features screw clamp terminals for secure wiring and is compatible with the ZB4 series. The manufacturer part number is ZB4BZ103TQ.

Where to buy the SCHNEIDER ZB4BZ103TQ contact block worldwide?

3G Electric supplies the SCHNEIDER ZB4BZ103TQ contact block worldwide. As a global industrial equipment distributor since 1990, we handle full logistics, customs clearance, and delivery to your location. Contact us for availability and lead time on this ZB4 series component.

How to install the SCHNEIDER ZB4BZ103TQ contact block?

To install the SCHNEIDER ZB4BZ103TQ contact block, mount it behind a 22 mm panel cutout in a ZB4 series operator. Connect wires to the screw clamp terminals using a suitable screwdriver, ensuring tight connections. Follow standard electrical safety practices and consult the ZB4 series manual for torque specifications.
