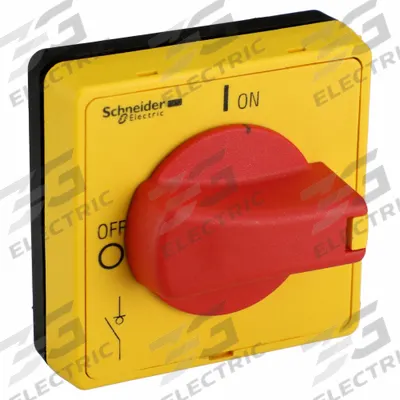

SCHNEIDER Rotary Handle: 0.2 in (5mm) Shaft Size - Switch Handles & Interlocks
SCHNEIDERSwitch Handles & Interlocks

SCHNEIDER Rotary Handle: 0.2 in (5mm) Shaft Size

The SCHNEIDER VLSH4S5R is a replacement rotary handle for the TeSys VLS Series, featuring a 0.2 in (5 mm) shaft size. It includes a padlock and has an opening for a 5 mm (0.2 in) shaft width.

SKU 3G-OTH-27361

Brand
SCHNEIDER
Item
Rotary Handle: 0.2 in
Category
Switch Handles & Interlocks
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

SCHNEIDER
Manufacturer Part Number
VLSH4S5R
Features
Opening for 5 mm (0.2 in) Shaft Width
Includes
Padlock
Shaft Size
0.2 in (5mm)
For Use With
TeSys VLS Series
Product Type
Replacement Handle
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

SCHNEIDER Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The SCHNEIDER VLSH4S5R is a replacement rotary handle for the TeSys VLS Series, featuring a 0.2 in (5 mm) shaft size. It includes a padlock and has an opening for a 5 mm (0.2 in) shaft width.

Frequently Asked Questions

What is the SCHNEIDER VLSH4S5R rotary handle used for?

The SCHNEIDER VLSH4S5R is a replacement rotary handle designed for use with the TeSys VLS Series. It provides manual control and lockout capability for industrial motor starters and contactors, enabling safe maintenance and operation in manufacturing and process automation environments.

What are the specifications of the SCHNEIDER VLSH4S5R rotary handle?

The SCHNEIDER VLSH4S5R features a shaft size of 0.2 in (5 mm) and an opening for a 5 mm (0.2 in) shaft width. It includes a padlock for lockout/tagout applications and is a replacement handle for the TeSys VLS Series. The brand is SCHNEIDER and the MPN is VLSH4S5R.

Where to buy the SCHNEIDER VLSH4S5R rotary handle worldwide?

3G Electric supplies the SCHNEIDER VLSH4S5R rotary handle worldwide. As a global industrial equipment distributor, we handle full logistics, customs clearance, and delivery to your location. Contact us for availability and lead time on this replacement handle for the TeSys VLS Series.

How to install the SCHNEIDER VLSH4S5R rotary handle?

To install the SCHNEIDER VLSH4S5R, first ensure the TeSys VLS device is de-energized. Align the handle's 5 mm shaft opening with the drive mechanism on the contactor or starter, then secure it per the manufacturer's instructions. Use the included padlock for lockout/tagout during maintenance.

Used in

Common applications for SCHNEIDER
Motor starting in conveyor systems — Schneider Altistart ATS 22 soft starters (e.g., ATS22D17S6U) reduce inrush current.
Speed control for industrial pumps — Schneider Altivar ATV320 VFDs (e.g., ATV320U55N4W) provide variable flow regulation.
Machine safety interlocking — Schneider XPSUAF13AP safety relays monitor emergency stop circuits on assembly lines.
Panel-mounted control stations — Schneider XB5 flush push buttons (ZB5AA5) serve as start/stop operators in MCCs.
Heavy-duty motor switching — Schneider LC1G150LSEA contactors handle 150 A loads in compressor and crusher applications.
Emergency stop actuation — Schneider 9001K mushroom-head push buttons (9001KR25R) provide red, momentary stop functions.
