SCHNEIDER Flush Push Button: Black, 22 mm Mounting Size, Metallic - Flush-Mount & Recessed Push-Button Operators
SCHNEIDERFlush-Mount & Recessed Push-Button Operators

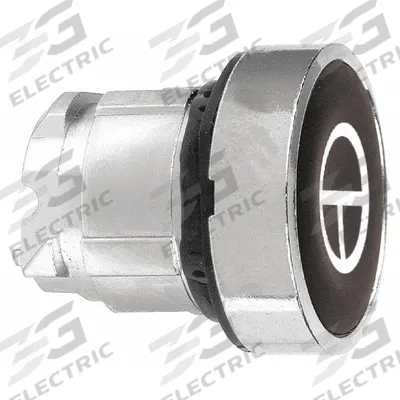

SCHNEIDER Flush Push Button: Black, 22 mm Mounting Size, Metallic

The SCHNEIDER Flush Push Button is a metallic, momentary flush-mount push-button operator from the XB4 series. It features a 22 mm mounting size and a black actuator with a 'T' legend. This component is designed for…

SKU 3G-OTH-34753

Brand
SCHNEIDER
Item
Flush Push Button: Black, 22 mm Mounting Size, Metallic
Category
Flush-Mount & Recessed Push-Button Operators
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

SCHNEIDER
Manufacturer Part Number
ZB4BA245
Series
XB4
Action
Momentary
Legend
T
Push Button Material Type
Metallic
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

SCHNEIDER Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The SCHNEIDER Flush Push Button is a metallic, momentary flush-mount push-button operator from the XB4 series. It features a 22 mm mounting size and a black actuator with a 'T' legend. This component is designed for industrial control panel applications requiring a momentary action.

Frequently Asked Questions

What is the SCHNEIDER ZB4BA245 flush push button used for?

The SCHNEIDER ZB4BA245 is a metallic, momentary flush push button from the XB4 series used in industrial control panels for momentary switching actions. It is suitable for applications requiring a black actuator with a 'T' legend, such as machine start or reset functions.

What are the specifications of the SCHNEIDER ZB4BA245 push button?

The SCHNEIDER ZB4BA245 is a momentary flush push button with a 22 mm mounting size, metallic construction, and a black actuator marked with legend 'T'. It is part of the XB4 series and is designed for industrial control panel environments requiring durable, reliable operation.

Where to buy the SCHNEIDER ZB4BA245 push button worldwide?

3G Electric supplies the SCHNEIDER ZB4BA245 flush push button worldwide. As a global industrial solutions provider, we handle full logistics, customs clearance, and delivery to your location. Contact us to source this XB4 series momentary operator for your control panel needs.

How to install the SCHNEIDER ZB4BA245 flush push button?

Install the SCHNEIDER ZB4BA245 into a 22 mm panel cutout, secure with the provided mounting nut, and wire the normally open contact according to your control circuit. Ensure the actuator is flush with the panel surface for proper momentary operation. Always follow Schneider's installation guidelines.
