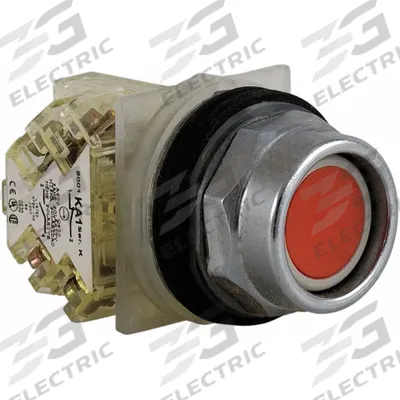

SCHNEIDER Extended Push Button Operator: Non-Illuminated, Extended Profile, Metallic - Extended-Length Push Buttons
SCHNEIDERExtended-Length Push Buttons

SCHNEIDER Extended Push Button Operator: Non-Illuminated, Extended Profile, Metallic

The SCHNEIDER Extended Push Button Operator is a non-illuminated, momentary-action push button from the 9001K series. This metallic, extended-profile operator features a 30 mm mounting and SPDT contact configuration…

SKU 3G-OTH-33609

Brand
SCHNEIDER
Item
Extended Push Button Operator: Non-Illuminated, Extended Profile, Metallic
Category
Extended-Length Push Buttons
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

SCHNEIDER
Manufacturer Part Number
9001KR2RH13
Series
9001K
Type
Extended Profile, Metallic, 30 mm, SPDT
Action
Momentary
Push Button Material Type
Metallic
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

SCHNEIDER Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The SCHNEIDER Extended Push Button Operator is a non-illuminated, momentary-action push button from the 9001K series. This metallic, extended-profile operator features a 30 mm mounting and SPDT contact configuration (MPN 9001KR2RH13).

Frequently Asked Questions

What is the SCHNEIDER Extended Push Button Operator used for?

The SCHNEIDER Extended Push Button Operator is used for momentary control in industrial machinery and panel applications. Its metallic, extended profile provides tactile feedback for operators in harsh environments, making it suitable for start/stop or selector functions in manufacturing, processing, and automation systems.

What are the specifications of the SCHNEIDER 9001KR2RH13 push button?

The SCHNEIDER 9001KR2RH13 is a non-illuminated, momentary-action push button from the 9001K series. It features a metallic extended profile, 30 mm mounting, and SPDT contact configuration. The push button material is metallic, and the brand is SCHNEIDER.

Where to buy the SCHNEIDER 9001KR2RH13 push button worldwide?

You can source the SCHNEIDER 9001KR2RH13 push button through 3G Electric, a global industrial equipment distributor. We handle full logistics, customs clearance, and delivery to worldwide destinations. Contact us for availability and lead time on this SCHNEIDER 9001K series component.

How to install the SCHNEIDER extended push button operator?

Install the SCHNEIDER extended push button operator by mounting it in a 30 mm panel cutout. Secure the operator with the provided locknut, then wire the SPDT contacts according to your control circuit. Ensure the momentary action is correctly oriented for reliable operation. Always follow standard industrial safety practices.

Used in

Common applications for SCHNEIDER
Motor starting in conveyor systems — Schneider Altistart ATS 22 soft starters (e.g., ATS22D17S6U) reduce inrush current.
Speed control for industrial pumps — Schneider Altivar ATV320 VFDs (e.g., ATV320U55N4W) provide variable flow regulation.
Machine safety interlocking — Schneider XPSUAF13AP safety relays monitor emergency stop circuits on assembly lines.
Panel-mounted control stations — Schneider XB5 flush push buttons (ZB5AA5) serve as start/stop operators in MCCs.
Heavy-duty motor switching — Schneider LC1G150LSEA contactors handle 150 A loads in compressor and crusher applications.
Emergency stop actuation — Schneider 9001K mushroom-head push buttons (9001KR25R) provide red, momentary stop functions.

SCHNEIDER Products

3G Electric supplies SCHNEIDER extended-length push buttons. We supply genuine products with in-stock availability on common SKUs, technical documentation, commissioning support, and warranty service — worldwide.
