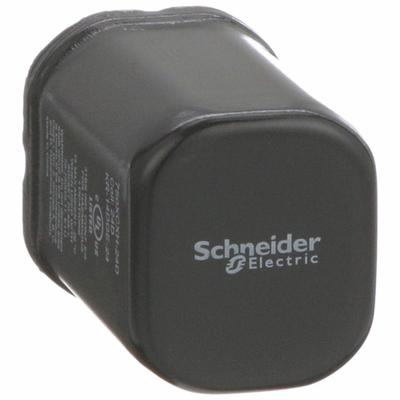

SCHNEIDER Hermetically Sealed Relay: Socket Mounted, 12 A Current Rating, 24V DC - Socket-Mounted Relays
SCHNEIDERSocket-Mounted Relays

SCHNEIDER Hermetically Sealed Relay: Socket Mounted, 12 A Current Rating, 24V DC

The SCHNEIDER Hermetically Sealed Relay: Socket Mounted (MPN 750XCXH-24D) is a 3PDT relay from the 750H Haz Location Series with an octal base and round pin shape. It features a socket mounting style, an 11-pin…

SKU 3G-OTH-42836

Brand
SCHNEIDER
Item
Hermetically Sealed Relay: Socket Mounted, 12 A Current Rating, 24V DC
Category
Socket-Mounted Relays
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

SCHNEIDER
Manufacturer Part Number
750XCXH-24D
Series
750H Haz Location Series
Type
3PDT, B Socket
DC
24V
Base Type
Octal
Pin Shape
Round
Current Rating
12 A
Mounting Style
Socket
Operating Current
12 A at 28V DC (Conforming to UL)
Electrical Connection
11-Pin Terminal
