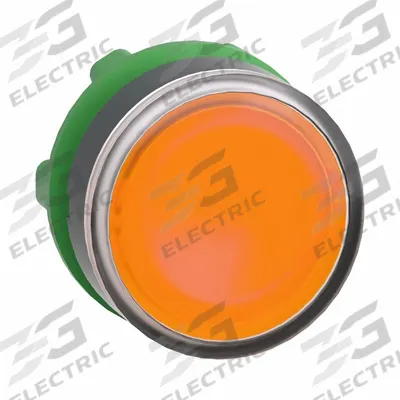

SCHNEIDER Flush Push Button: 22 mm Mounting Size, Non-Metallic - Illuminated Flush-Mount Push-Button Operators
SCHNEIDERIlluminated Flush-Mount Push-Button Operators

SCHNEIDER Flush Push Button: 22 mm Mounting Size, Non-Metallic

The SCHNEIDER Flush Push Button (MPN ZB5AH053) is an illuminated flush-mount push-button operator from the XB5 series. It features a 22 mm mounting size, a non-metallic construction, and a maintained action. This…

SKU 3G-OTH-33679

Brand
SCHNEIDER
Item
Flush Push Button: 22 mm Mounting Size, Non-Metallic
Category
Illuminated Flush-Mount Push-Button Operators
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

SCHNEIDER
Manufacturer Part Number
ZB5AH053
Series
XB5
Action
Maintained
Push Button Material Type
Non-Metallic
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

SCHNEIDER Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The SCHNEIDER Flush Push Button (MPN ZB5AH053) is an illuminated flush-mount push-button operator from the XB5 series. It features a 22 mm mounting size, a non-metallic construction, and a maintained action. This component is designed for industrial control panel applications requiring a durable, non-conductive operator.

Frequently Asked Questions

What is the SCHNEIDER ZB5AH053 flush push button used for?

The SCHNEIDER ZB5AH053 is an illuminated flush-mount push-button operator from the XB5 series. It is used in industrial control panels where a durable, non-conductive maintained-action operator is required. Common applications include machine start/stop stations, conveyor controls, and process automation systems.

What are the specifications of the SCHNEIDER ZB5AH053?

The SCHNEIDER ZB5AH053 has a 22 mm mounting size, a non-metallic push button material, and a maintained action. It is part of the XB5 series and is an illuminated flush-mount operator. The manufacturer part number is ZB5AH053. It is designed for industrial control panel use.

Where to buy the SCHNEIDER ZB5AH053 worldwide?

You can source the SCHNEIDER ZB5AH053 through 3G Electric, a global industrial equipment distributor. We handle full logistics, customs clearance, and delivery to worldwide destinations. Contact us for availability and lead time. 3G Electric supplies genuine SCHNEIDER components for industrial applications.

How to install the SCHNEIDER ZB5AH053 flush push button?

To install the SCHNEIDER ZB5AH053, mount it into a 22 mm panel cutout and secure it with the provided locking ring. Wire the maintained-action contacts according to your control circuit diagram. Ensure the panel is de-energized during installation. Refer to the XB5 series manual for torque specifications and wiring details.

Used in

Common applications for SCHNEIDER
Motor starting in conveyor systems — Schneider Altistart ATS 22 soft starters (e.g., ATS22D17S6U) reduce inrush current.
Speed control for industrial pumps — Schneider Altivar ATV320 VFDs (e.g., ATV320U55N4W) provide variable flow regulation.
Machine safety interlocking — Schneider XPSUAF13AP safety relays monitor emergency stop circuits on assembly lines.
Panel-mounted control stations — Schneider XB5 flush push buttons (ZB5AA5) serve as start/stop operators in MCCs.
Heavy-duty motor switching — Schneider LC1G150LSEA contactors handle 150 A loads in compressor and crusher applications.
Emergency stop actuation — Schneider 9001K mushroom-head push buttons (9001KR25R) provide red, momentary stop functions.

SCHNEIDER Products

3G Electric supplies SCHNEIDER illuminated flush-mount push-button operators. We supply genuine products with in-stock availability on common SKUs, technical documentation, commissioning support, and warranty service — worldwide.
