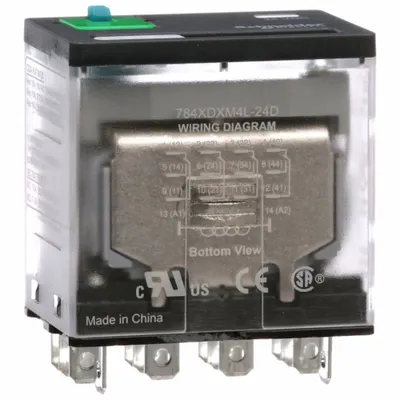

SCHNEIDER General Purpose Relay: Socket Mounted, 15 A Current Rating, 24V DC, 4PDT
The SCHNEIDER 784 Series General Purpose Relay is a socket-mounted relay with a square base and Faston terminal electrical connection. It operates at 10 A at 151/277V and is available with a 24V DC coil and 4PDT…
SKU 3G-OTH-39273
Also listed as: 784XDXM4L24D · 784XDXM4L 24D
Local availability & support — Singapore
- Local office
- 20 Woodlands Link #09-05, Singapore 738733
- Phone
- +65 8878 8355
- Delivery
- Same-day or next-business-day delivery within Singapore for in-stock items; 7–14 days for factory-order parts from Europe.
- Payment
- Invoicing in SGD. PayNow, bank transfer, and corporate PO accepted.
- Ships to
- Singapore
Need installation or engineering help?
Ask a question
Product Description
The SCHNEIDER 784 Series General Purpose Relay is a socket-mounted relay with a square base and Faston terminal electrical connection. It operates at 10 A at 151/277V and is available with a 24V DC coil and 4PDT contact configuration (MPN 784XDXM4L-24D). This relay is designed for socket mounting and is part of the SCHNEIDER 784 Series.
Frequently Asked Questions
What is the SCHNEIDER 784XDXM4L-24D relay used for?
The SCHNEIDER 784XDXM4L-24D is a general purpose relay used for switching loads in industrial control panels, HVAC systems, and automation equipment. Its 4PDT contact configuration and 10 A rating at 151/277V make it suitable for isolating or controlling multiple circuits from a single 24V DC signal.
What are the specifications of the SCHNEIDER 784XDXM4L-24D relay?
The SCHNEIDER 784XDXM4L-24D is a socket-mounted relay with a square base and Faston terminal connections. It has a 24V DC coil, 4PDT contacts, and an operating current of 10 A at 151/277V. It is part of the SCHNEIDER 784 Series and uses an F-style socket.
Where to buy the SCHNEIDER 784XDXM4L-24D relay worldwide?
3G Electric supplies the SCHNEIDER 784XDXM4L-24D relay worldwide. As a global industrial distributor, we handle full logistics, customs clearance, and delivery to your site. Contact us for availability and lead time; we source and deliver this relay to any country.
How to select a socket-mounted relay like the SCHNEIDER 784XDXM4L-24D?
To select a socket-mounted relay, match the coil voltage (24V DC for this model), contact configuration (4PDT), and current rating (10 A at 151/277V) to your load requirements. Ensure the socket type (F-style) and mounting base (square) are compatible with your panel layout. Always verify the manufacturer part number, such as 784XDXM4L-24D from SCHNEIDER.
Used in
Common applications for SCHNEIDERSCHNEIDER Products
3G Electric supplies SCHNEIDER socket-mounted relays. We supply genuine products with in-stock availability on common SKUs, technical documentation, commissioning support, and warranty service — worldwide.
