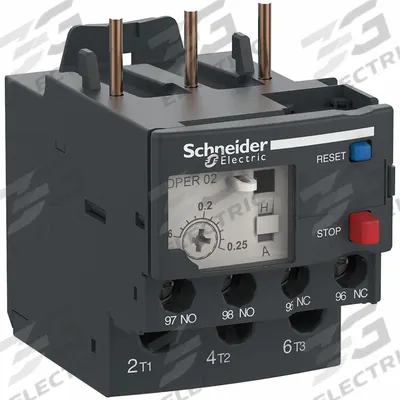

SCHNEIDER Overload Relay: Thermal Protection, 3 Poles, 1NO/1NC - IEC Thermal Overload Relays
SCHNEIDERIEC Thermal Overload Relays

SCHNEIDER Overload Relay: Thermal Protection, 3 Poles, 1NO/1NC

The SCHNEIDER DPER02 is an IEC thermal overload relay with integrated bimetallic elements, designed for 3-pole motor protection. It features 1NO/1NC auxiliary contacts, a maximum voltage rating of 690V AC, and phase…

SKU 3G-OTH-39227

Brand
SCHNEIDER
Item
Overload Relay: Thermal Protection, 3 Poles, 1NO/1NC
Category
IEC Thermal Overload Relays
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

SCHNEIDER
Manufacturer Part Number
DPER02
Type
1NO/1NC, Phase Loss Sensitivity
Poles
3
Compatible Contactors
TeSys Easy (9 to 32 Amp Models)
Auxiliary Contact Form
1NO/1NC
Maximum Voltage Rating
690V AC
Phase Loss Sensitivity
Yes
Thermal Units Required
None (Relay Includes Integrated Bimetallic Elements)
Terminal Connection Type
Screw Clamp Terminals
Compatible Contactor Series
Easy TeSys
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

SCHNEIDER Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The SCHNEIDER DPER02 is an IEC thermal overload relay with integrated bimetallic elements, designed for 3-pole motor protection. It features 1NO/1NC auxiliary contacts, a maximum voltage rating of 690V AC, and phase loss sensitivity. This relay is compatible with TeSys Easy contactors (9 to 32 Amp models) and uses screw clamp terminals for connection.

Frequently Asked Questions

What is the SCHNEIDER DPER02 overload relay used for?

The SCHNEIDER DPER02 is an IEC thermal overload relay used for 3-pole motor protection. It guards motors against overload and phase loss conditions using integrated bimetallic elements. It is compatible with TeSys Easy contactors (9 to 32 Amp models) and is commonly applied in industrial motor control panels and machinery.

What are the specifications of the SCHNEIDER DPER02 overload relay?

The SCHNEIDER DPER02 is a 3-pole thermal overload relay with 1NO/1NC auxiliary contacts, a maximum voltage rating of 690V AC, and phase loss sensitivity. It uses screw clamp terminals and includes integrated bimetallic elements, so no separate thermal units are required. It is compatible with TeSys Easy contactors (9 to 32 Amp models).

Where to buy the SCHNEIDER DPER02 overload relay worldwide?

You can source the SCHNEIDER DPER02 overload relay worldwide through 3G Electric, a global industrial equipment distributor. We handle full logistics, customs clearance, and delivery to your location. Contact us for availability and lead time; we supply genuine SCHNEIDER components for motor protection applications.

How to select the correct SCHNEIDER overload relay for a motor?

To select the correct SCHNEIDER overload relay, match the relay's current range to the motor's full-load current. The DPER02 is designed for 3-pole motors and is compatible with TeSys Easy contactors (9 to 32 Amp models). Ensure the relay has phase loss sensitivity if required. Use screw clamp terminals for secure wiring connections.
