SCHNEIDER Flange Mount Relay: Surface (Side Flange) Mounted, 10 A Current Rating
The SCHNEIDER Flange Mount Relay is a surface (side flange) mounted relay from the Square D Universal Series. It features a square base, push-on terminal electrical connection, and an operating current of 1.5 A at…
SKU 3G-OTH-36983
Local availability & support — Singapore
- Local office
- 20 Woodlands Link #09-05, Singapore 738733
- Phone
- +65 8878 8355
- Delivery
- Same-day or next-business-day delivery within Singapore for in-stock items; 7–14 days for factory-order parts from Europe.
- Payment
- Invoicing in SGD. PayNow, bank transfer, and corporate PO accepted.
- Ships to
- Singapore
Need installation or engineering help?
Ask a question
Product Description

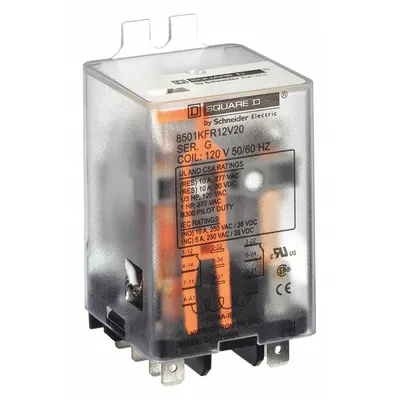

The SCHNEIDER Flange Mount Relay is a surface (side flange) mounted relay from the Square D Universal Series. It features a square base, push-on terminal electrical connection, and an operating current of 1.5 A at 240V AC (Inductive Load). The relay has a 10 A current rating at 120V AC and a DPDT contact configuration (MPN 8501KFR12V20).
Frequently Asked Questions
What is the SCHNEIDER Flange Mount Relay used for?
The SCHNEIDER Flange Mount Relay is used for switching industrial control circuits, motor starters, and automation systems. Its DPDT configuration and 10 A rating at 120V AC suit panel-building and machinery applications. The Square D Universal Series design ensures compatibility with standard square-base sockets.
What are the specifications of the SCHNEIDER 8501KFR12V20 relay?
The SCHNEIDER 8501KFR12V20 is a DPDT relay with a 10 A current rating at 120V AC. It has a square base, side flange mounting, push-on terminals, and an operating current of 1.5 A at 240V AC (inductive load). It belongs to the Square D Universal Series.
Where to buy SCHNEIDER 8501KFR12V20 worldwide?
You can source the SCHNEIDER 8501KFR12V20 relay through 3G Electric, a global industrial equipment distributor. We handle full logistics, customs clearance, and delivery to worldwide destinations. Contact us for availability and lead time on this Square D Universal Series relay.
How to install a SCHNEIDER side flange relay?
Mount the relay securely using the side flange holes onto a flat surface. Connect wires to the push-on terminals per the DPDT contact diagram. Ensure the coil voltage matches your 120V AC supply. Always follow standard electrical safety practices and consult the Square D Universal Series manual for torque and wiring details.
Used in
Common applications for SCHNEIDERSCHNEIDER Products
3G Electric supplies SCHNEIDER surface-mounted relays. We supply genuine products with in-stock availability on common SKUs, technical documentation, commissioning support, and warranty service — worldwide.
