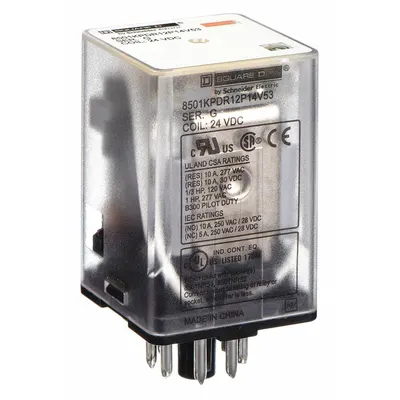

SCHNEIDER General Purpose Relay: Socket Mounted, 10 A Current Rating, 24V DC, DPDT
The SCHNEIDER General Purpose Relay is a socket-mounted relay from the Square D 8501K Series, featuring an octal base with round pins and a plug-in mounting style. It has a DPDT contact configuration, a 10 A current…
SKU 3G-OTH-38501
Local availability & support — Singapore
- Local office
- 20 Woodlands Link #09-05, Singapore 738733
- Phone
- +65 8878 8355
- Delivery
- Same-day or next-business-day delivery within Singapore for in-stock items; 7–14 days for factory-order parts from Europe.
- Payment
- Invoicing in SGD. PayNow, bank transfer, and corporate PO accepted.
- Ships to
- Singapore
Need installation or engineering help?
Ask a question
Product Description
The SCHNEIDER General Purpose Relay is a socket-mounted relay from the Square D 8501K Series, featuring an octal base with round pins and a plug-in mounting style. It has a DPDT contact configuration, a 10 A current rating, and operates on 24V DC, with an 8-pin terminal electrical connection (MPN 8501KPDR12P14V53).
Frequently Asked Questions
What is the SCHNEIDER 8501KPDR12P14V53 relay used for?
This SCHNEIDER general purpose relay is used for switching and controlling industrial circuits. Its DPDT configuration and 10 A rating suit automation, HVAC, and motor control applications. The plug-in octal base allows quick replacement in control panels.
What are the specifications of the SCHNEIDER 8501KPDR12P14V53 relay?
This SCHNEIDER Square D 8501K Series relay has a DPDT contact type, 10 A current rating, 24V DC coil voltage, octal base with round pins, and 8-pin terminal connection. It features plug-in mounting and is identified by MPN 8501KPDR12P14V53.
Where to buy the SCHNEIDER 8501KPDR12P14V53 relay worldwide?
3G Electric supplies the SCHNEIDER 8501KPDR12P14V53 relay worldwide. As a global industrial distributor, we handle full logistics, customs clearance, and delivery to your location. Contact us for availability and lead time.
How to install the SCHNEIDER 8501KPDR12P14V53 relay?
To install, ensure the coil voltage matches your 24V DC supply. Align the relay's round pins with the octal socket and press firmly until seated. Verify the DPDT contacts are wired correctly per your schematic. Always de-energize circuits before handling.
Used in
Common applications for SCHNEIDERSCHNEIDER Products
3G Electric supplies SCHNEIDER socket-mounted relays. We supply genuine products with in-stock availability on common SKUs, technical documentation, commissioning support, and warranty service — worldwide.
