SCHNEIDER Harmony RXM Series Socket-Mounted Relay - Socket-Mounted Relays
SCHNEIDERSocket-Mounted Relays

SCHNEIDER Harmony RXM Series Socket-Mounted Relay

The SCHNEIDER General Purpose Relay is a socket-mounted relay from the Harmony™ RXM Series, featuring a square base with flat pins for plug-in mounting and quick-connect electrical connections. This 4PDT relay is…

SKU 3G-OTH-40328

Brand
SCHNEIDER
Item
Harmony RXM Series Socket-Mounted Relay
Part Number
RXM4GB2F7
Category
Socket-Mounted Relays
Available to Order
Also known as:RXM4GB2F7SCHNEIDER
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineerMessage via Telegram
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Local availability & support — Singapore

Local office
20 Woodlands Link #09-05, Singapore 738733
Phone
+65 8878 8355
Delivery
Same-day or next-business-day delivery within Singapore for in-stock items; 7–14 days for factory-order parts from Europe.
Payment
Invoicing in SGD. PayNow, bank transfer, and corporate PO accepted.
Ships to
Singapore

Technical Specifications

SCHNEIDER
Manufacturer Part Number
RXM4GB2F7
Series
Harmony™ RXM Series
Type
4PDT, G Socket
AC
120V
Base Type
Square
Pin Shape
Flat
Current Rating
3 A
Mounting Style
Plug-In
Electrical Connection
Quick-Connect

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

SCHNEIDER Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

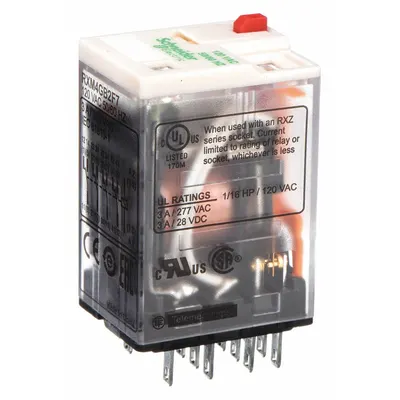

The SCHNEIDER General Purpose Relay is a socket-mounted relay from the Harmony™ RXM Series, featuring a square base with flat pins for plug-in mounting and quick-connect electrical connections. This 4PDT relay is rated for 3 A at 120V AC and uses a G socket (MPN RXM4GB2F7).
