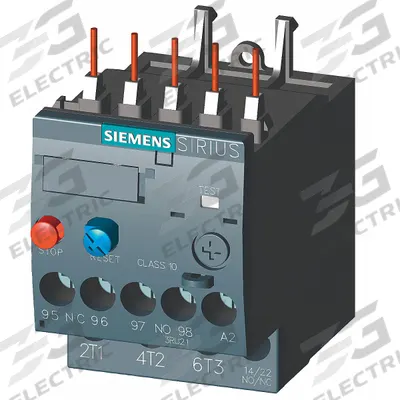

Siemens Overload Relay: Thermal Protection, 3 Poles, 1NO/1NC, Frame Size S00 - IEC Thermal Overload Relays
SiemensIEC Thermal Overload Relays

Siemens Overload Relay: Thermal Protection, 3 Poles, 1NO/1NC, Frame Size S00

The SIEMENS Overload Relay: Thermal Protection (MPN 3RU21161JB0) is an IEC thermal overload relay in Frame Size S00, designed for use with SIRIUS contactors of the same frame size. It features a 1NO/1NC auxiliary…

SKU 3G-OTH-41008

Brand
Siemens
Item
Overload Relay: Thermal Protection, 3 Poles, 1NO/1NC, Frame Size S00
Category
IEC Thermal Overload Relays
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

Siemens
Manufacturer Part Number
3RU21161JB0
Type
1NO/1NC, Frame Size S00, 7 A – 10 A
Poles
3
Frame Size
S00
Compatible Contactors
Frame Size S00
Auxiliary Contact Form
1NO/1NC
Maximum Voltage Rating
690V AC
Phase Loss Sensitivity
No
Thermal Units Required
None (Relay Includes Integrated Bimetallic Elements)
Terminal Connection Type
Screw Terminals
Compatible Contactor Series
SIRIUS
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

Siemens Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The SIEMENS Overload Relay: Thermal Protection (MPN 3RU21161JB0) is an IEC thermal overload relay in Frame Size S00, designed for use with SIRIUS contactors of the same frame size. It features a 1NO/1NC auxiliary contact form, screw terminals, and a maximum voltage rating of 690V AC. The relay includes integrated bimetallic elements, eliminating the need for separate thermal units, and does not offer phase loss sensitivity.

Frequently Asked Questions

What is the SIEMENS 3RU21161JB0 overload relay used for?

The SIEMENS 3RU21161JB0 is an IEC thermal overload relay used to protect motors from overcurrent and phase imbalance. It is designed for use with SIRIUS contactors of Frame Size S00 in industrial automation and control panels, providing reliable thermal protection via integrated bimetallic elements.

What are the specifications of the SIEMENS 3RU21161JB0 overload relay?

The SIEMENS 3RU21161JB0 is a thermal overload relay with Frame Size S00, 3 poles, 1NO/1NC auxiliary contacts, screw terminals, and a maximum voltage rating of 690V AC. It includes integrated bimetallic elements, so no separate thermal units are needed. It does not offer phase loss sensitivity.

Where to buy the SIEMENS 3RU21161JB0 overload relay worldwide?

You can source the SIEMENS 3RU21161JB0 overload relay worldwide through 3G Electric, a global industrial equipment distributor. We handle full logistics, customs clearance, and delivery to your location. Contact us for availability and lead time; we supply genuine Siemens components for industrial applications.

How to select the correct SIEMENS overload relay for a motor?

To select the correct SIEMENS overload relay, match the relay's current range (e.g., 7–10 A for the 3RU21161JB0) to the motor's full-load current. Ensure the frame size (S00) matches your SIRIUS contactor. Use screw terminals for wiring. The integrated bimetallic elements provide thermal protection without separate units.
