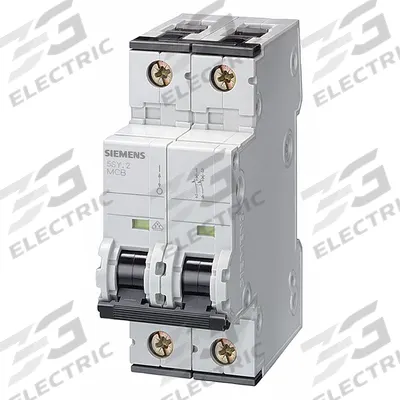

Siemens Supplementary Protector: 25 A Amps, 72V DC, 10kA at 400V AC, Screw Clamp - B-Curve, 2-Pole UL1077 DIN Rail-Mount Supplementary Protectors
SiemensB-Curve, 2-Pole UL1077 DIN Rail-Mount Supplementary Protectors

Siemens Supplementary Protector: 25 A Amps, 72V DC, 10kA at 400V AC, Screw Clamp

The SIEMENS IEC Supplementary Protector (SKU 30XV04, MPN 5SY42256) is a B-curve, 2-pole UL1077 DIN rail-mount supplementary protector rated at 25 A. It features a screw clamp terminal connection, an AC voltage rating…

SKU 3G-OTH-21785

Brand
Siemens
Item
Supplementary Protector: 25 A Amps, 72V DC, 10kA at 400V AC, Screw Clamp
Category
B-Curve, 2-Pole UL1077 DIN Rail-Mount Supplementary Protectors
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

Siemens
Manufacturer Part Number
5SY42256
Series
5SY4
Type
10kA at 400V AC, Screw Clamp, 5SY4
AC
400V
DC
72V
Curve Type
B
Max. AIR Rating
10kA at 400V AC
AC Voltage Rating
400V AC
DC Voltage Rating
72V DC
Terminal Connection
Screw Clamp
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

Siemens Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The SIEMENS IEC Supplementary Protector (SKU 30XV04, MPN 5SY42256) is a B-curve, 2-pole UL1077 DIN rail-mount supplementary protector rated at 25 A. It features a screw clamp terminal connection, an AC voltage rating of 400V AC, a DC voltage rating of 72V DC, and a maximum AIR rating of 10kA at 400V AC. This device is part of the Siemens 5SY4 series.

Frequently Asked Questions

What is the SIEMENS 5SY42256 supplementary protector used for?

The SIEMENS 5SY42256 is a B-curve, 2-pole supplementary protector rated at 25 A. It protects branch circuits and sensitive equipment against overloads and short circuits in industrial control panels, HVAC systems, and machinery. Its 72V DC rating also suits DC control circuits.

What are the specifications of the SIEMENS 5SY42256?

The SIEMENS 5SY42256 is a 25 A, B-curve, 2-pole supplementary protector with a screw clamp terminal. It has an AC voltage rating of 400V AC, a DC voltage rating of 72V DC, and a maximum AIR rating of 10kA at 400V AC. It is part of the Siemens 5SY4 series and is UL1077 listed.

Where to buy the SIEMENS 5SY42256 worldwide?

You can source the SIEMENS 5SY42256 through 3G Electric, a global industrial equipment distributor. We handle full logistics, customs clearance, and delivery to worldwide destinations. Contact us for availability and lead time; we provide competitive pricing and reliable sourcing for this Siemens 5SY4 series protector.

How to install the SIEMENS 5SY42256 supplementary protector?

Install the SIEMENS 5SY42256 by snapping it onto a standard DIN rail. Ensure the circuit is de-energized. Connect wires to the screw clamp terminals per the torque specifications on the device label. Verify the B-curve matches your load type. Test operation after installation.
