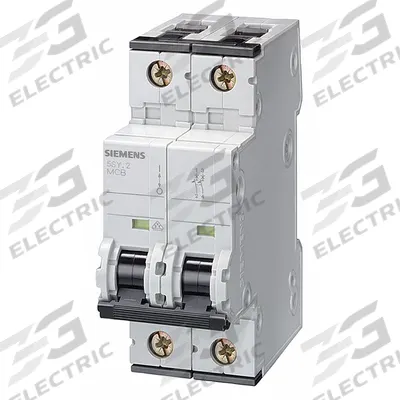

Siemens Supplementary Protector: 45 A Amps, 72V DC, 10kA at 400V AC, Screw Clamp - C-Curve, 2-Pole UL1077 DIN Rail-Mount Supplementary Protectors
SiemensC-Curve, 2-Pole UL1077 DIN Rail-Mount Supplementary Protectors

Siemens Supplementary Protector: 45 A Amps, 72V DC, 10kA at 400V AC, Screw Clamp

The Siemens 5SY4 series IEC Supplementary Protector (SKU 30XV14) is a C-curve, 2-pole UL1077 DIN rail-mount supplementary protector rated at 45 A. It features a maximum AIR rating of 10 kA at 400 V AC, AC voltage…

SKU 3G-OTH-21165

Brand
Siemens
Item
Supplementary Protector: 45 A Amps, 72V DC, 10kA at 400V AC, Screw Clamp
Category
C-Curve, 2-Pole UL1077 DIN Rail-Mount Supplementary Protectors
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

Siemens
Manufacturer Part Number
5SY42457
Series
5SY4
Type
10kA at 400V AC, Screw Clamp, 5SY4
AC
400V
DC
72V
Curve Type
C
Max. AIR Rating
10kA at 400V AC
AC Voltage Rating
400V AC
DC Voltage Rating
72V DC
Terminal Connection
Screw Clamp
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

Siemens Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The Siemens 5SY4 series IEC Supplementary Protector (SKU 30XV14) is a C-curve, 2-pole UL1077 DIN rail-mount supplementary protector rated at 45 A. It features a maximum AIR rating of 10 kA at 400 V AC, AC voltage rating of 400 V AC, and DC voltage rating of 72 V DC, with screw clamp terminals.

Frequently Asked Questions

What is the Siemens 5SY42457 supplementary protector used for?

The Siemens 5SY42457 is a C-curve, 2-pole UL1077 DIN rail-mount supplementary protector rated at 45 A. It protects industrial control circuits, HVAC equipment, and motor starters from overcurrents and short circuits in panel boards and machinery across 14 industrial departments.

What are the specifications of the Siemens 5SY42457?

The Siemens 5SY42457 is a 45 A, 2-pole supplementary protector with a C-curve, rated 400V AC and 72V DC. It has a maximum AIR rating of 10kA at 400V AC and uses screw clamp terminals. It is part of the 5SY4 series and complies with UL1077.

Where to buy the Siemens 5SY42457 worldwide?

3G Electric supplies the Siemens 5SY42457 supplementary protector worldwide. As a global industrial solutions provider, we handle full logistics, customs clearance, and delivery to your facility. Contact us for pricing and lead time on this and other Siemens circuit protection components.

How to install the Siemens 5SY42457 on a DIN rail?

To install the Siemens 5SY42457, snap it onto a standard 35 mm DIN rail. Ensure the rail is clean and the protector is oriented correctly. Tighten the screw clamp terminals to the manufacturer's recommended torque. Always de-energize the circuit before installation and follow local electrical codes.
