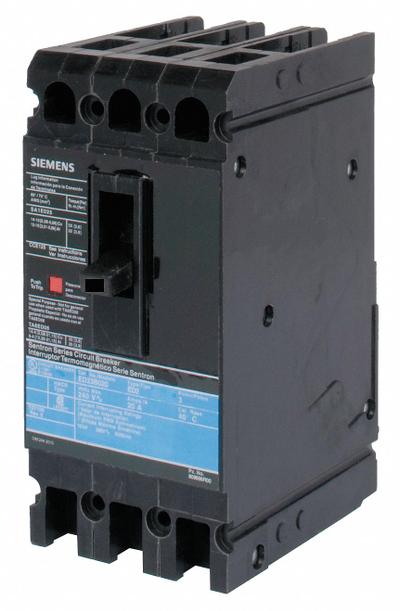

Siemens Molded Case Circuit Breaker: 25 A Amps, 10kA at 240V AC, Fixed, Load Side Lug - ED-Frame Siemens Molded Case Circuit Breakers
SiemensED-Frame Siemens Molded Case Circuit Breakers

Siemens Molded Case Circuit Breaker: 25 A Amps, 10kA at 240V AC, Fixed, Load Side Lug

The SIEMENS Molded Case Circuit Breaker is an ED-Frame, ED2-series device rated for 25 A amps with a maximum AIR rating of 10kA at 240V AC. It features a fixed instantaneous trip, ABC phase connection, and load-side…

SKU 3G-OTH-22451

Brand
Siemens
Item
Molded Case Circuit Breaker: 25 A Amps, 10kA at 240V AC, Fixed, Load Side Lug
Category
ED-Frame Siemens Molded Case Circuit Breakers
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

Siemens
Manufacturer Part Number
ED23B025
Series
ED2
Type
10kA at 240V AC, Fixed, Load Side Lug, ABC, ED2
Max. AIR Rating
10kA at 240V AC
Phase Connection
ABC
Instantaneous Trip
Fixed
Terminal Connection
Load Side Lug
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

Siemens Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The SIEMENS Molded Case Circuit Breaker is an ED-Frame, ED2-series device rated for 25 A amps with a maximum AIR rating of 10kA at 240V AC. It features a fixed instantaneous trip, ABC phase connection, and load-side lug terminal connection (MPN ED23B025).
