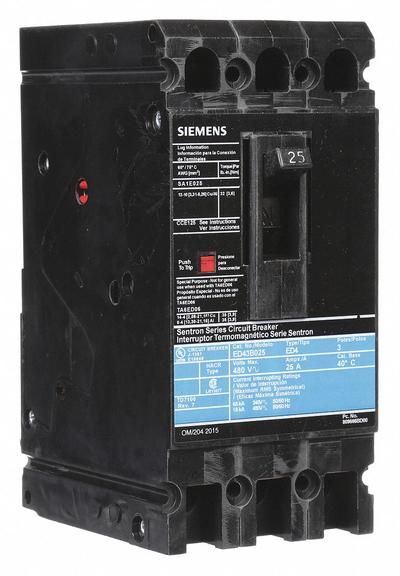

Siemens Molded Case Circuit Breaker: 25 A Amps, 18kA at 480V AC, Fixed, Load Side Lug - ED-Frame Siemens Molded Case Circuit Breakers
SiemensED-Frame Siemens Molded Case Circuit Breakers

Siemens Molded Case Circuit Breaker: 25 A Amps, 18kA at 480V AC, Fixed, Load Side Lug

The SIEMENS ED43B025 is a 25 A ED-Frame Molded Case Circuit Breaker from the ED4 series. It features a fixed instantaneous trip, a maximum AIR rating of 18kA at 480V AC, and ABC phase connection with load side lug…

SKU 3G-OTH-21771

Brand
Siemens
Item
Molded Case Circuit Breaker: 25 A Amps, 18kA at 480V AC, Fixed, Load Side Lug
Category
ED-Frame Siemens Molded Case Circuit Breakers
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

Siemens
Manufacturer Part Number
ED43B025
Series
ED4
Type
18kA at 480V AC, Fixed, Load Side Lug, ABC, ED4
Max. AIR Rating
18kA at 480V AC
Phase Connection
ABC
Instantaneous Trip
Fixed
Terminal Connection
Load Side Lug
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

Siemens Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The SIEMENS ED43B025 is a 25 A ED-Frame Molded Case Circuit Breaker from the ED4 series. It features a fixed instantaneous trip, a maximum AIR rating of 18kA at 480V AC, and ABC phase connection with load side lug terminals.

Used in

Common applications for Siemens
District cooling plants — LME73 + RWF55 for condenser-water modulation
Inflight catering and food-processing steam boilers — LMG22 with SQN90 air-fuel cross-damper
Hospital steam-plant redundancy — LME41 with QRA2 UV flame detection for dual-fuel boilers
Semiconductor fab process heat — LME23 and SKP55 gas valves on hot-oil heater skids
Container-terminal reefer-deck heating — LMG22 retrofit onto legacy burner racks

Siemens Products

3G Electric supplies Siemens ed-frame siemens molded case circuit breakers. We supply genuine products with in-stock availability on common SKUs, technical documentation, commissioning support, and warranty service — worldwide.
