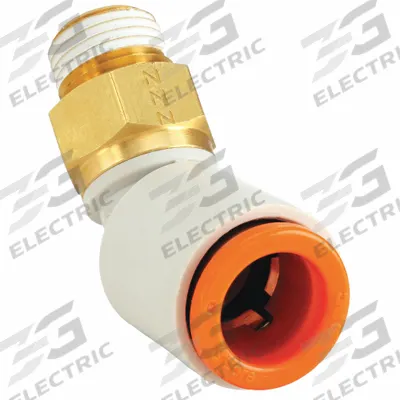

SMC Push-Fit Elbow Fitting: 1/2 in OD x 3/8 in OD Size, Push-to-Connect x MNPT - Polybutylene & Brass Tube Fittings
SMCPolybutylene & Brass Tube Fittings

SMC Push-Fit Elbow Fitting: 1/2 in OD x 3/8 in OD Size, Push-to-Connect x MNPT

The SMC Push-Fit Elbow Fitting (MPN KQ2K13-36AS) is a push-to-connect x MNPT brass fitting in white, sized for 1/2 in OD x 3/8 in OD tubing with a 3/8" thread. 3G Electric interprets demand and delivers this genuine…

SKU 3G-OTH-489300

Brand
SMC
Item
Push-Fit Elbow Fitting: 1/2 in OD x 3/8 in OD Size, Push-to-Connect x MNPT
Category
Polybutylene & Brass Tube Fittings
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

SMC
Manufacturer Part Number
KQ2K13-36AS
Type
Push-to-Connect x MNPT, Brass, White
Thread Size A
3/8"
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

SMC Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The SMC Push-Fit Elbow Fitting (MPN KQ2K13-36AS) is a push-to-connect x MNPT brass fitting in white, sized for 1/2 in OD x 3/8 in OD tubing with a 3/8" thread. 3G Electric interprets demand and delivers this genuine industrial fitting across 14 departments, with specialist depth in pneumatics as an authorised distributor for brands like SMC, Festo, and others.

Frequently Asked Questions

What is the SMC Push-Fit Elbow Fitting KQ2K13-36AS used for?

This SMC push-to-connect elbow fitting connects 1/2 in OD x 3/8 in OD polybutylene or brass tubing to a 3/8" male NPT port. It is used in pneumatic systems, automation lines, and fluid-handling applications where a compact, leak-resistant 90° turn is needed.

What are the specifications of the SMC KQ2K13-36AS fitting?

The SMC KQ2K13-36AS is a push-to-connect x MNPT brass elbow fitting in white. It accepts 1/2 in OD x 3/8 in OD tubing and has a 3/8" male NPT thread. The manufacturer part number is KQ2K13-36AS.

Where to buy the SMC KQ2K13-36AS fitting worldwide?

3G Electric supplies the genuine SMC KQ2K13-36AS push-fit elbow fitting worldwide. We handle full logistics, customs clearance, and delivery to your site. Contact us for availability and lead time on this pneumatic fitting.

How to install the SMC push-to-connect elbow fitting?

Cut tubing square, deburr, and push fully into the fitting until it stops. For MNPT threads, apply PTFE tape to the male thread and tighten by hand plus 1–2 turns with a wrench. Do not overtighten. Always depressurize the system before installation.

Used in

Common applications for SMC
Automotive assembly — SMC ZP3 flat vacuum pads for handling small components in pick-and-place robots
Semiconductor manufacturing — SMC ZM series vacuum generators with needle valves for precise wafer handling
Food packaging — SMC AW-D series filter regulators for clean compressed air in pneumatic actuators
General industrial automation — SMC AS2211F speed control valves for regulating cylinder speeds in conveyor systems
Vacuum conveying — SMC ZH series box-type vacuum generators for material transport in packaging lines
Machine tool coolant systems — SMC ZF series in-line filters to protect vacuum ejectors from debris
