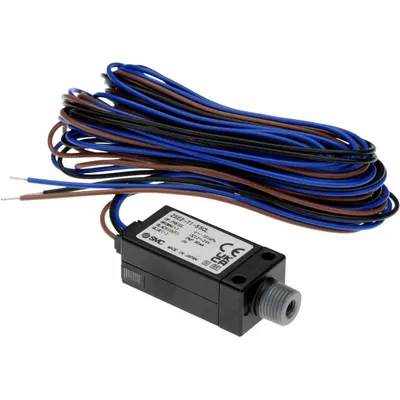

SMC ZSE2-T1-55CL Compact Vacuum Pressure Switch
The SMC ZSE2-T1-55CL is a compact vacuum pressure switch from the ZSE2 Series, featuring a 1/8 in port size. It operates on 12 to 24V DC and provides a PNP open collector 1 output without analog output, with 200…
SKU 3G-OTH-207467
Also listed as: ZSE2T155CL · ZSE2 T1 55CL
Local availability & support — Singapore
- Local office
- 20 Woodlands Link #09-05, Singapore 738733
- Phone
- +65 8878 8355
- Payment
- Invoicing in SGD. PayNow, bank transfer, and corporate PO accepted.
Need installation or engineering help?
Ask a question
Product Description
The SMC ZSE2-T1-55CL is a compact vacuum pressure switch from the ZSE2 Series, featuring a 1/8 in port size. It operates on 12 to 24V DC and provides a PNP open collector 1 output without analog output, with 200 degrees adjustment. The switch includes a 4-Pin Snap-In Plug connection and is rated for a pressure range of -101 kPa to 0 kPa and an ambient temperature range of 0°C to 60°C.
Frequently Asked Questions
What is the SMC ZSE2-T1-55CL pressure switch used for?
The SMC ZSE2-T1-55CL is a compact vacuum pressure switch used to monitor and control vacuum levels in industrial automation systems. It is ideal for applications such as pick-and-place, packaging, and material handling where precise vacuum detection is required.
What are the specifications of the SMC ZSE2-T1-55CL?
The SMC ZSE2-T1-55CL operates on 12 to 24V DC with a PNP open collector 1 output and 200 degrees adjustment. It has a 1/8 in port size, a pressure range of -101 kPa to 0 kPa, and an ambient temperature range of 0°C to 60°C. It features a 4-Pin Snap-In Plug connection.
Where to buy the SMC ZSE2-T1-55CL worldwide?
You can source the SMC ZSE2-T1-55CL through 3G Electric, a global industrial equipment distributor. We handle full logistics, customs clearance, and delivery to worldwide locations. Contact us for availability and lead time.
How to install the SMC ZSE2-T1-55CL pressure switch?
Mount the switch securely using the 1/8 in port, connect the 4-Pin Snap-In Plug to a compatible controller, and set the PNP output as needed. Ensure the pressure range (-101 kPa to 0 kPa) and ambient temperature (0°C to 60°C) are within limits. Follow SMC's generic installation guidelines for best results.
