SNAP-TITEH Series Hydraulic Quick-Connect Coupling Bodies

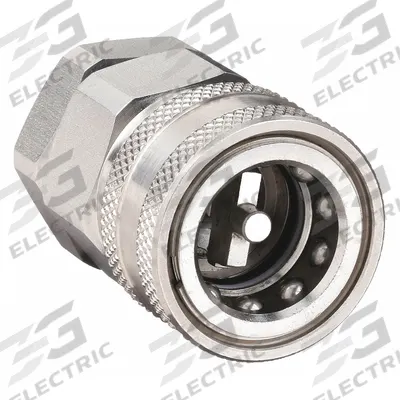

SNAP-TITE Hydraulic Quick Connect Hose Coupling: 1 in, 316 Stainless Steel

SKU 3G-OTH-462767

Brand

SNAP-TITE

Item

Hydraulic Quick Connect Hose Coupling: 1 in, 316 Stainless Steel

Technical Specifications

SNAP-TITE

Manufacturer Part Number

SVHC16-16FV

Thread Size

1"-11-1/2

Seal Material

Fluorocarbon

Stainless Steel

316

View Full Spec Sheet

Technical Documents

No technical documents available for this product.

Request documentation →

Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.

Talk to an engineer

Ask a question

SNAP-TITE Products

3G Electric (S) Pte. Ltd. — Singapore

Product Description

The SNAP-TITE H Series Hydraulic Quick-Connect Coupling Body (SKU 20LG64, MPN SVHC16-16FV) is a 1-inch coupling with 1"-11-1/2 thread size, constructed from 316 stainless steel and featuring a fluorocarbon seal. 3G Electric interprets customer demand and delivers this genuine industrial component across 14 departments — with specialist depth in pumps and controls — ensuring you get the right answer, not just a catalog.

Frequently Asked Questions

What is the SNAP-TITE SVHC16-16FV hydraulic quick connect coupling used for?

The SNAP-TITE SVHC16-16FV is a 1-inch hydraulic quick-connect coupling body used in fluid power systems for rapid, leak-free connection and disconnection of hydraulic lines. It is common in industrial machinery, mobile equipment, and high-pressure fluid transfer applications requiring 316 stainless steel and fluorocarbon seals.

What are the specifications of the SNAP-TITE SVHC16-16FV coupling?

The SNAP-TITE SVHC16-16FV is a 1-inch H Series hydraulic quick-connect coupling body with a 1"-11-1/2 thread size. It is made of 316 stainless steel with a fluorocarbon seal material. The manufacturer part number is SVHC16-16FV, and it is designed for high-pressure hydraulic systems.

Where to buy the SNAP-TITE SVHC16-16FV coupling worldwide?

3G Electric supplies the genuine SNAP-TITE SVHC16-16FV coupling worldwide. As a global industrial solutions provider, we handle full logistics, customs clearance, and delivery to your location. Contact us to source this 316 stainless steel quick-connect coupling with fluorocarbon seals for your hydraulic system.

How to select the right SNAP-TITE hydraulic quick connect coupling?

To select the correct SNAP-TITE coupling, match the thread size (1"-11-1/2 for the SVHC16-16FV), material compatibility (316 stainless steel for corrosion resistance), and seal material (fluorocarbon for chemical resistance). Verify pressure rating and flow requirements against your hydraulic system specifications before ordering.

Used in

Common applications for SNAP-TITE

Hydraulic tool maintenance — SNAP-TITE IH Series couplings (e.g., VIHC6-6F) for quick hose connections in hydraulic wrenches and crimpers.

Agricultural equipment — SNAP-TITE IH Series couplings (e.g., VIHC4-4M) for hydraulic lines on tractors and harvesters.

Construction machinery — SNAP-TITE IH Series couplings (e.g., VIHC8-8F) for hydraulic circuits on excavators and loaders.

Industrial fluid power systems — SNAP-TITE IH Series couplings (e.g., VIHC12-12F) for connecting hydraulic power units to actuators.

Mobile hydraulic systems — SNAP-TITE IH Series couplings (e.g., VIHC6-6M) for quick disconnects on forklifts and aerial lifts.
