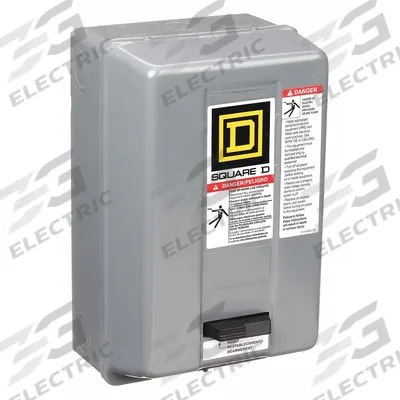

SQUARE D NEMA Magnetic Motor Starter: Non-Reversing, 3 Poles, NEMA Size 00 - Enclosed Non-Reversing Starters with Electronic Overloads
SQUAREEnclosed Non-Reversing Starters with Electronic Overloads

SQUARE D NEMA Magnetic Motor Starter: Non-Reversing, 3 Poles, NEMA Size 00

The SQUARE D NEMA Magnetic Motor Starter is an enclosed non-reversing starter with electronic overloads, featuring three poles and a NEMA Size 00 rating at 9 A. It operates with a 110/120V AC coil and includes screw…

SKU 3G-OTH-130689

Brand
SQUARE
Item
D NEMA Magnetic Motor Starter: Non-Reversing, 3 Poles, NEMA Size 00
Category
Enclosed Non-Reversing Starters with Electronic Overloads
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

SQUARE
Manufacturer Part Number
8536SAG12V02H30S
Type
NEMA Size 00, 9 A
Poles
3
AC Coil
120V
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

SQUARE Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The SQUARE D NEMA Magnetic Motor Starter is an enclosed non-reversing starter with electronic overloads, featuring three poles and a NEMA Size 00 rating at 9 A. It operates with a 110/120V AC coil and includes screw clamp terminals. This unit has no auxiliary contacts and no enclosure type specified.

Frequently Asked Questions

What is the SQUARE D NEMA Magnetic Motor Starter used for?

This enclosed non-reversing starter with electronic overloads is used to start and protect three-phase AC motors in industrial applications. It is suitable for conveyors, pumps, and fans where forward-only operation is required. The NEMA Size 00 rating at 9 A makes it ideal for smaller motor loads.

What are the specifications of the SQUARE D 8536SAG12V02H30S?

This SQUARE D starter is a NEMA Size 00, 9 A, non-reversing unit with three poles and a 120V AC coil. It features screw clamp terminals and includes no auxiliary contacts. The electronic overload provides adjustable protection. The manufacturer part number is 8536SAG12V02H30S.

Where to buy the SQUARE D 8536SAG12V02H30S worldwide?

3G Electric supplies the SQUARE D 8536SAG12V02H30S magnetic motor starter worldwide. As a global industrial distributor, we handle full logistics, customs clearance, and delivery to your site. Contact us for availability and lead time. We source genuine SQUARE D components for industrial applications.

How to select the correct NEMA size for a motor starter?

Select NEMA size based on motor full-load current and voltage. For a 9 A motor at 120V AC, NEMA Size 00 is appropriate. Ensure the coil voltage matches your control circuit. The SQUARE D 8536SAG12V02H30S includes an electronic overload that must be set to the motor nameplate FLA for proper protection.
