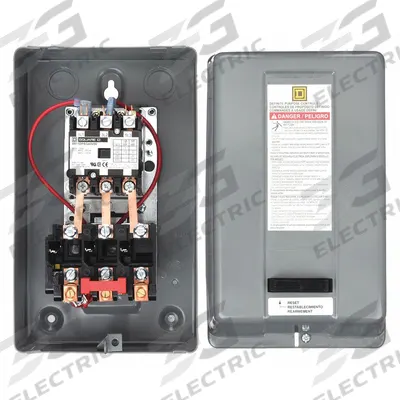

SQUARE D Definite Purpose Magnetic Motor Starter: Non-Reversing, 3 Poles - Enclosed Non-Reversing Starters with Thermal Overloads
SQUARE DEnclosed Non-Reversing Starters with Thermal Overloads

SQUARE D Definite Purpose Magnetic Motor Starter: Non-Reversing, 3 Poles

The SQUARE D Definite Purpose Magnetic Motor Starter is a non-reversing enclosed starter with thermal overloads, rated for 3 poles, 40 A, and a 480V AC coil (MPN 8911DPSG43V06). It requires 3 thermal units (not…

SKU 3G-OTH-42802

Brand
SQUARE D
Item
Definite Purpose Magnetic Motor Starter: Non-Reversing, 3 Poles
Category
Enclosed Non-Reversing Starters with Thermal Overloads
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

SQUARE D
Manufacturer Part Number
8911DPSG43V06
Type
40 A, SQD145
Poles
3
AC Coil
480V
Thermal Units Required
3 Thermal Units Required (Not Included)
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

SQUARE D Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The SQUARE D Definite Purpose Magnetic Motor Starter is a non-reversing enclosed starter with thermal overloads, rated for 3 poles, 40 A, and a 480V AC coil (MPN 8911DPSG43V06). It requires 3 thermal units (not included) for overload protection.

Frequently Asked Questions

What is the SQUARE D Definite Purpose Magnetic Motor Starter used for?

This starter is used to control and protect motors in industrial applications such as HVAC, pumps, and conveyors. It provides non-reversing motor starting with thermal overload protection, requiring three thermal units (not included) to prevent motor damage from overcurrent.

What are the specifications of the SQUARE D 8911DPSG43V06 starter?

The SQUARE D 8911DPSG43V06 is a definite purpose magnetic motor starter with 3 poles, 40 A rating, and a 480V AC coil. It is an enclosed non-reversing starter with thermal overloads and requires 3 thermal units (not included) for overload protection.

Where to buy the SQUARE D 8911DPSG43V06 starter worldwide?

You can source the SQUARE D 8911DPSG43V06 starter through 3G Electric, a global industrial equipment distributor. We handle full logistics, customs clearance, and delivery to worldwide destinations, ensuring reliable supply for your motor control needs.

How to select thermal units for the SQUARE D 8911DPSG43V06 starter?

Select thermal units based on the full-load current of your motor. The SQUARE D starter requires 3 thermal units (not included) for overload protection. Consult the motor nameplate and SQUARE D thermal unit selection charts to match the correct heater element for your application.
