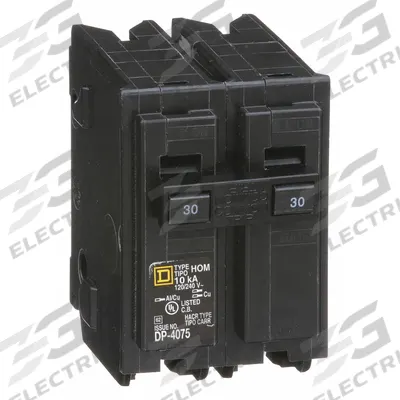

SQUARE D Miniature Circuit Breaker: 30 A, 120/240V AC, Single Phase, 10kA at 120/240V AC - HOM Series, Plug-In Square D Miniature Circuit Breakers
SQUARE DHOM Series, Plug-In Square D Miniature Circuit Breakers

SQUARE D Miniature Circuit Breaker: 30 A, 120/240V AC, Single Phase, 10kA at 120/240V AC

The SQUARE D HOM230 is a 30 A, single-phase, 2-pole miniature circuit breaker from the HOM Series, designed for plug-in use with Homeline load centers. It carries a maximum AIR rating of 10kA at 120/240V AC and an AC…

SKU 3G-OTH-21016

Brand
SQUARE D
Item
Miniature Circuit Breaker: 30 A, 120/240V AC, Single Phase, 10kA at 120/240V AC
Category
HOM Series, Plug-In Square D Miniature Circuit Breakers
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

SQUARE D
Manufacturer Part Number
HOM230
Type
Single Phase, 10kA at 120/240V AC
AC
120/240V
Amps
30 A
Phase
Single
Poles
2
For Use With
Homeline Load Center
Max. AIR Rating
10kA at 120/240V AC
AC Voltage Rating
120/240V AC
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

SQUARE D Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The SQUARE D HOM230 is a 30 A, single-phase, 2-pole miniature circuit breaker from the HOM Series, designed for plug-in use with Homeline load centers. It carries a maximum AIR rating of 10kA at 120/240V AC and an AC voltage rating of 120/240V AC.

Frequently Asked Questions

What is the SQUARE D HOM230 miniature circuit breaker used for?

The SQUARE D HOM230 is a 30 A, 2-pole miniature circuit breaker used for overcurrent protection in residential and light commercial single-phase systems. It is designed for plug-in installation exclusively in Homeline load centers, protecting branch circuits from overloads and short circuits at 120/240V AC.

What are the specifications of the SQUARE D HOM230 circuit breaker?

The SQUARE D HOM230 is a 30 A, single-phase, 2-pole miniature circuit breaker rated 120/240V AC with a maximum AIR rating of 10kA at 120/240V AC. It is part of the HOM Series and is designed for plug-in use with Homeline load centers. The manufacturer part number is HOM230.

Where to buy the SQUARE D HOM230 circuit breaker worldwide?

3G Electric supplies the SQUARE D HOM230 miniature circuit breaker worldwide. As a global industrial equipment distributor, we handle full logistics, customs clearance, and delivery to your location. Contact us to source this genuine SQUARE D HOM230 breaker for your Homeline load center.

How to install the SQUARE D HOM230 circuit breaker?

To install the SQUARE D HOM230, ensure the Homeline load center is de-energized. Align the breaker's plug-in tabs with the bus bar and push firmly until it snaps into place. Connect the circuit wires to the terminal screws and torque to the manufacturer's specification. Always follow local electrical codes.
