SQUARE D NEMA Magnetic Contactor: Non-Reversing, 3 Poles, NEMA Size 5, 270 A - Non-Reversing NEMA Contactors
SQUARE DNon-Reversing NEMA Contactors

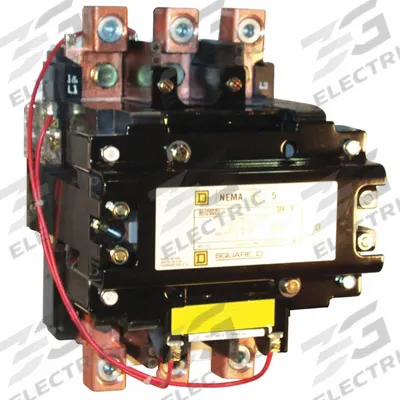

SQUARE D NEMA Magnetic Contactor: Non-Reversing, 3 Poles, NEMA Size 5, 270 A

SKU 3G-OTH-41048

Brand
SQUARE D
Item
NEMA Magnetic Contactor: Non-Reversing, 3 Poles, NEMA Size 5, 270 A
Category
Non-Reversing NEMA Contactors
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

SQUARE D
Manufacturer Part Number
8502SGO2V02S
Type
NEMA Size 5, 270 A
AC
120V
Poles
3
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

SQUARE D Products
3G Electric (S) Pte. Ltd. — Singapore

Frequently Asked Questions

What is a SQUARE D NEMA Magnetic Contactor used for?

A SQUARE D NEMA Magnetic Contactor is used to switch electrical loads in industrial motor control and automation systems. This non-reversing, 3-pole, NEMA Size 5, 270 A, 120V AC model is suitable for heavy-duty applications such as conveyors, pumps, and compressors in manufacturing and process industries.

What are the specifications of the SQUARE D 8502SGO2V02S contactor?

The SQUARE D 8502SGO2V02S is a NEMA Size 5, non-reversing magnetic contactor with 3 poles, rated 270 A at 120V AC. It is designed for reliable switching of high-current loads in industrial environments. SQUARE D is a brand of Schneider Electric, known for robust NEMA-rated components.

Where to buy SQUARE D 8502SGO2V02S contactor worldwide?

You can source the SQUARE D 8502SGO2V02S contactor from 3G Electric, a global industrial solutions provider. We handle full logistics, customs clearance, and delivery to worldwide destinations. Contact us for pricing and lead time on this NEMA Size 5, 270 A, 120V AC magnetic contactor.

How to select the right NEMA contactor size for a motor?

Select a NEMA contactor size based on the motor's full-load current and voltage. For a 270 A, 120V AC motor, a NEMA Size 5 contactor like the SQUARE D 8502SGO2V02S is appropriate. Always verify the contactor's continuous current rating exceeds the motor's nameplate amps and consider duty cycle and ambient temperature.
