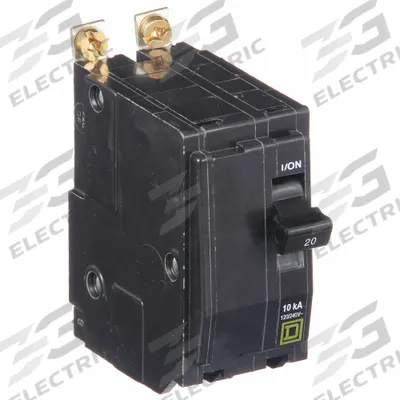

SQUARE D Miniature Circuit Breaker: 20 A, 120/240V AC, Single Phase, 10kA at 120/240V AC - QOB Series, Bolt-On Square D Miniature Circuit Breakers
SQUARE DQOB Series, Bolt-On Square D Miniature Circuit Breakers

SQUARE D Miniature Circuit Breaker: 20 A, 120/240V AC, Single Phase, 10kA at 120/240V AC

The SQUARE D QOB Series Miniature Circuit Breaker (MPN QOB220HID) is a 20 A, single-phase, bolt-on unit rated for 120/240V AC with a maximum AIR rating of 10kA at 120/240V AC. This 2-pole breaker is designed for use…

SKU 3G-OTH-22770

Brand
SQUARE D
Item
Miniature Circuit Breaker: 20 A, 120/240V AC, Single Phase, 10kA at 120/240V AC
Category
QOB Series, Bolt-On Square D Miniature Circuit Breakers
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

SQUARE D
Manufacturer Part Number
QOB220HID
Type
Single Phase, 10kA at 120/240V AC
AC
120/240V
Amps
20 A
Phase
Single
Poles
2
For Use With
Square D NQOD Panelboards
Max. AIR Rating
10kA at 120/240V AC
AC Voltage Rating
120/240V AC
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

SQUARE D Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The SQUARE D QOB Series Miniature Circuit Breaker (MPN QOB220HID) is a 20 A, single-phase, bolt-on unit rated for 120/240V AC with a maximum AIR rating of 10kA at 120/240V AC. This 2-pole breaker is designed for use with Square D NQOD panelboards.

Frequently Asked Questions

What is the SQUARE D QOB220HID miniature circuit breaker used for?

The SQUARE D QOB220HID is a 20 A, 2-pole bolt-on miniature circuit breaker used for overcurrent protection in single-phase 120/240V AC circuits. It is designed specifically for use with Square D NQOD panelboards in commercial and industrial electrical distribution systems.

What are the specifications of the SQUARE D QOB220HID circuit breaker?

The SQUARE D QOB220HID is a 20 A, single-phase, 2-pole bolt-on breaker rated for 120/240V AC with a maximum AIR rating of 10kA at 120/240V AC. It is part of the QOB Series and is designed for use with Square D NQOD panelboards.

Where to buy the SQUARE D QOB220HID circuit breaker worldwide?

3G Electric supplies the SQUARE D QOB220HID miniature circuit breaker worldwide. As a global industrial equipment distributor, we handle full logistics, customs clearance, and delivery to your location. Contact us for availability and lead time on this Square D QOB Series breaker.

How to install the SQUARE D QOB220HID bolt-on circuit breaker?

To install the SQUARE D QOB220HID, ensure the panelboard is de-energized. Align the breaker's bolt-on tabs with the bus bar in a Square D NQOD panelboard, then tighten the mounting screw securely. Connect line and load wires to the terminals per local electrical codes. Always consult a qualified electrician.
