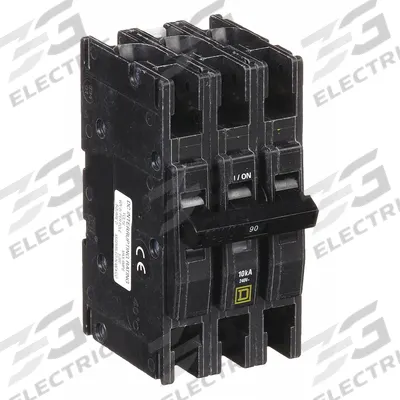

SQUARE D Miniature Circuit Breaker: 90 A, 120/240V AC, Three Phase, 10kA at 120/240V AC - QOU Series, Unit-Mount Square D Miniature Circuit Breakers
SQUARE DQOU Series, Unit-Mount Square D Miniature Circuit Breakers

SQUARE D Miniature Circuit Breaker: 90 A, 120/240V AC, Three Phase, 10kA at 120/240V AC

The SQUARE D QOU390 is a 90 A, three-phase miniature circuit breaker from the QOU Series, rated for 120/240V AC with a maximum AIR rating of 10kA at 120/240V AC. This unit-mount breaker is designed for use with…

SKU 3G-OTH-23311

Brand
SQUARE D
Item
Miniature Circuit Breaker: 90 A, 120/240V AC, Three Phase, 10kA at 120/240V AC
Category
QOU Series, Unit-Mount Square D Miniature Circuit Breakers
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

SQUARE D
Manufacturer Part Number
QOU390
Type
Three Phase, 10kA at 120/240V AC
AC
120/240V
Amps
90 A
Phase
Three
Poles
3
For Use With
Heating
Max. AIR Rating
10kA at 120/240V AC
AC Voltage Rating
120/240V AC
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

SQUARE D Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The SQUARE D QOU390 is a 90 A, three-phase miniature circuit breaker from the QOU Series, rated for 120/240V AC with a maximum AIR rating of 10kA at 120/240V AC. This unit-mount breaker is designed for use with heating applications and features three poles.

Frequently Asked Questions

What is the SQUARE D QOU390 miniature circuit breaker used for?

The SQUARE D QOU390 is a 90 A, three-phase miniature circuit breaker designed for heating applications. It provides overcurrent protection in commercial and industrial electrical systems where 120/240V AC, three-phase power is required.

What are the specifications of the SQUARE D QOU390?

The SQUARE D QOU390 is a 90 A, three-pole miniature circuit breaker rated for 120/240V AC, three-phase. It has a maximum AIR rating of 10kA at 120/240V AC and is part of the QOU Series. It is intended for use with heating equipment.

Where to buy the SQUARE D QOU390 worldwide?

3G Electric supplies the SQUARE D QOU390 miniature circuit breaker worldwide. As a global industrial equipment distributor, we handle full logistics, customs clearance, and delivery to your location. Contact us to source this breaker for your project.

How to select the right SQUARE D QOU series breaker for heating?

Select a SQUARE D QOU series breaker based on your system's voltage, current rating, and phase configuration. For heating applications, ensure the breaker's amp rating matches the load and that the voltage rating (e.g., 120/240V AC) and pole count align with your panel.
