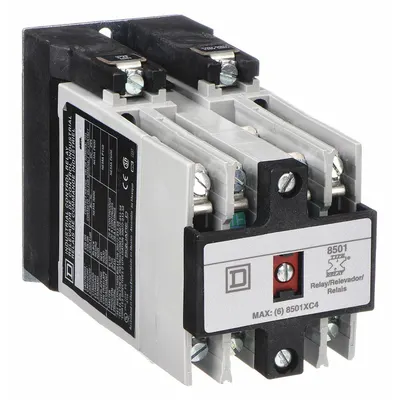

SQUARE D NEMA Control Relay: Surface Relay Mounting, 120V AC Coil Volt
The SQUARE D NEMA Control Relay is a surface-mounted relay with a 6NO, 20 A contact configuration and a 120V AC coil voltage (MPN 8501XMO60V02). 3G Electric interprets your demand for this specific control component…
SKU 3G-OTH-35774
Local availability & support — Singapore
- Local office
- 20 Woodlands Link #09-05, Singapore 738733
- Phone
- +65 8878 8355
- Delivery
- Same-day or next-business-day delivery within Singapore for in-stock items; 7–14 days for factory-order parts from Europe.
- Payment
- Invoicing in SGD. PayNow, bank transfer, and corporate PO accepted.
- Ships to
- Singapore
Need installation or engineering help?
Ask a question
Product Description
The SQUARE D NEMA Control Relay is a surface-mounted relay with a 6NO, 20 A contact configuration and a 120V AC coil voltage (MPN 8501XMO60V02). 3G Electric interprets your demand for this specific control component, sourcing it from our extensive network across 14 industrial departments, with specialist depth in electrical controls to ensure the right solution.
Frequently Asked Questions
What is the SQUARE D 8501XMO60V02 NEMA control relay used for?
The SQUARE D 8501XMO60V02 is a surface-mounted NEMA control relay used in industrial automation and motor control panels. It switches loads up to 20 A with a 120V AC coil, commonly applied in conveyors, pumps, and HVAC systems across manufacturing and process industries.
What are the specifications of the SQUARE D 8501XMO60V02 relay?
This SQUARE D relay has a 120V AC coil voltage, 6 normally open (6NO) contacts rated at 20 A, and a surface-mounting style. The manufacturer part number is 8501XMO60V02. It is a NEMA-rated control relay designed for industrial panel installations.
Where to buy the SQUARE D 8501XMO60V02 relay worldwide?
3G Electric supplies the SQUARE D 8501XMO60V02 relay to customers worldwide. As a global industrial sourcing partner, we handle full logistics, customs clearance, and delivery to your site. Contact us for pricing and lead time on this surface-mounted NEMA control relay.
How to install a SQUARE D surface-mounted control relay?
Mount the SQUARE D 8501XMO60V02 relay on a flat panel using the provided slots. Wire the 120V AC coil to the control circuit and connect load wires to the 6NO terminals rated at 20 A. Follow NEC and local codes; torque terminals to manufacturer specifications for reliable operation.
Used in
Common applications for SQUARE DSQUARE D Products
3G Electric supplies SQUARE D surface-mounted relays. We supply genuine products with in-stock availability on common SKUs, technical documentation, commissioning support, and warranty service — worldwide.
