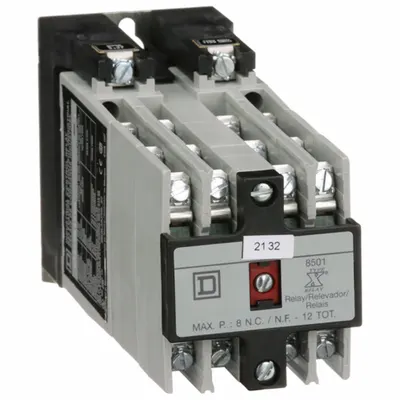

SQUARE D NEMA Control Relay: Surface Relay Mounting, 120V AC Coil Volt
The SQUARE D NEMA Control Relay is a surface-mounted relay with a 120V AC coil, 12 normally open contacts rated at 10 A (MPN 8501XO1200V02). 3G Electric interprets your demand for this specific control component…
SKU 3G-OTH-35855
Local availability & support — Singapore
- Local office
- 20 Woodlands Link #09-05, Singapore 738733
- Phone
- +65 8878 8355
- Delivery
- Same-day or next-business-day delivery within Singapore for in-stock items; 7–14 days for factory-order parts from Europe.
- Payment
- Invoicing in SGD. PayNow, bank transfer, and corporate PO accepted.
- Ships to
- Singapore
Need installation or engineering help?
Ask a question
Product Description
The SQUARE D NEMA Control Relay is a surface-mounted relay with a 120V AC coil, 12 normally open contacts rated at 10 A (MPN 8501XO1200V02). 3G Electric interprets your demand for this specific control component, sources it from our authorized supply chain, and supports your facility with genuine industrial equipment across 14 departments — including specialist depth in controls.
Frequently Asked Questions
What is the SQUARE D 8501XO1200V02 control relay used for?
The SQUARE D 8501XO1200V02 is a NEMA control relay used for switching industrial loads in motor control centers, conveyor systems, and automation panels. Its 12 normally open contacts and 10 A rating suit high-cycle applications requiring reliable signal isolation and load switching.
What are the specifications of the SQUARE D 8501XO1200V02 relay?
This SQUARE D NEMA control relay has a 120V AC coil voltage, 12 normally open (12NO) contacts rated at 10 A, and a surface relay mounting style. The manufacturer part number is 8501XO1200V02. It is designed for industrial environments requiring durable electromechanical switching.
Where to buy SQUARE D 8501XO1200V02 worldwide?
3G Electric supplies the SQUARE D 8501XO1200V02 control relay worldwide. As a global industrial distributor, we handle full logistics, customs clearance, and delivery to your facility. Contact us for availability and lead time; we source and deliver this relay to any international destination.
How to install a SQUARE D surface-mount control relay?
Mount the SQUARE D 8501XO1200V02 relay on a flat surface using the provided slots. Wire the 120V AC coil to the control circuit and connect load wires to the 12NO contacts rated at 10 A. Follow NEC guidelines and verify coil voltage matches your supply before energizing.
Used in
Common applications for SQUARE DSQUARE D Products
3G Electric supplies SQUARE D surface-mounted relays. We supply genuine products with in-stock availability on common SKUs, technical documentation, commissioning support, and warranty service — worldwide.
