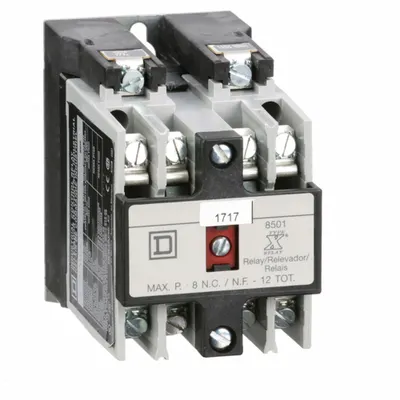

SQUARE D 8501XO20V02 NEMA Control Relay, Surface Mount, 120V AC Coil, 2NO, 10 A
The SQUARE D NEMA Control Relay is a surface-mounted relay with a 120V AC coil, 2NO configuration, and 10 A rating. 3G Electric interprets your demand for this OEM part (MPN 8501XO20V02) and delivers it across 14…
SKU 3G-OTH-35586
Local availability & support — Singapore
- Local office
- 20 Woodlands Link #09-05, Singapore 738733
- Phone
- +65 8878 8355
- Delivery
- Same-day or next-business-day delivery within Singapore for in-stock items; 7–14 days for factory-order parts from Europe.
- Payment
- Invoicing in SGD. PayNow, bank transfer, and corporate PO accepted.
- Ships to
- Singapore
Need installation or engineering help?
Ask a question
Product Description
The SQUARE D NEMA Control Relay is a surface-mounted relay with a 120V AC coil, 2NO configuration, and 10 A rating. 3G Electric interprets your demand for this OEM part (MPN 8501XO20V02) and delivers it across 14 industrial departments, with specialist depth in controls as an authorised distributor.
Frequently Asked Questions
What is the SQUARE D 8501XO20V02 control relay used for?
The SQUARE D 8501XO20V02 is a NEMA control relay used for switching electrical loads in industrial automation and motor control circuits. It is commonly applied in panel building, conveyor systems, and machine control where reliable surface mounting and 120V AC coil operation are required.
What are the specifications of the SQUARE D 8501XO20V02 relay?
The SQUARE D 8501XO20V02 is a NEMA control relay with surface relay mounting, 120V AC coil voltage, 2 normally open (2NO) contacts, and a 10 A rating. The manufacturer part number is 8501XO20V02. It is designed for industrial control panels and general-purpose switching.
Where to buy the SQUARE D 8501XO20V02 relay worldwide?
You can source the SQUARE D 8501XO20V02 relay through 3G Electric, a global industrial equipment distributor. We handle full logistics, customs clearance, and delivery to worldwide destinations. Contact us for availability and lead time; we provide reliable sourcing for this SQUARE D part.
How to install a SQUARE D surface-mount control relay?
Mount the SQUARE D 8501XO20V02 relay on a flat surface using the provided mounting holes. Connect the 120V AC coil supply to the designated coil terminals, and wire the 2NO contacts according to your control circuit. Always follow NEC guidelines and de-energize the circuit before installation.
Used in
Common applications for SQUARE DSQUARE D Products
3G Electric supplies SQUARE D surface-mounted relays. We supply genuine products with in-stock availability on common SKUs, technical documentation, commissioning support, and warranty service — worldwide.
