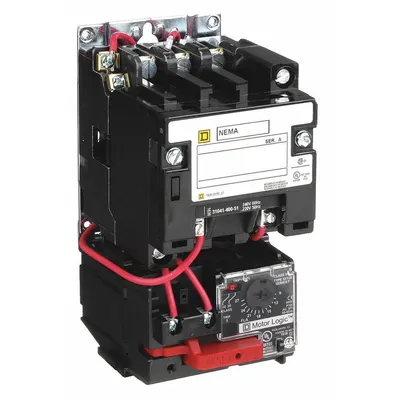

SQUARE D 8536SCO3V03H30 Non-Reversing Starter with Electronic Overload
The SQUARE D NEMA Magnetic Motor Starter is a non-reversing starter with an electronic overload, designed for three-phase applications. This NEMA Size 1 unit is rated for 27 A and features a 220/240V AC coil, screw…
SKU 3G-OTH-42342
Local availability & support — Singapore
- Local office
- 20 Woodlands Link #09-05, Singapore 738733
- Phone
- +65 8878 8355
- Payment
- Invoicing in SGD. PayNow, bank transfer, and corporate PO accepted.
Need installation or engineering help?
Ask a question
Product Description
The SQUARE D NEMA Magnetic Motor Starter is a non-reversing starter with an electronic overload, designed for three-phase applications. This NEMA Size 1 unit is rated for 27 A and features a 220/240V AC coil, screw clamp terminals, and no auxiliary contacts or operator controls.
Frequently Asked Questions
What is the SQUARE D 8536SCO3V03H30 magnetic motor starter used for?
The SQUARE D NEMA Size 1 magnetic motor starter is used to start and stop three-phase motors in industrial applications such as conveyors, pumps, and compressors. Its electronic overload protects the motor from damage due to overcurrent, making it suitable for continuous-duty machinery.
What are the specifications of the SQUARE D 8536SCO3V03H30?
This non-reversing starter has 3 poles, NEMA Size 1, rated 27 A with a 220/240V AC coil. It uses screw clamp terminals, includes no auxiliary contacts or pilot light, and features an electronic overload (no thermal units required). It is a SQUARE D product, part number 8536SCO3V03H30.
Where to buy the SQUARE D 8536SCO3V03H30 worldwide?
3G Electric supplies the SQUARE D 8536SCO3V03H30 magnetic motor starter to customers worldwide. As a global industrial solutions provider, we handle full logistics, customs clearance, and delivery to your facility. Contact us for pricing and lead time on this NEMA Size 1 starter.
How to select the correct overload for a SQUARE D NEMA Size 1 starter?
For the SQUARE D 8536SCO3V03H30 with an electronic overload, no separate thermal units are needed. Set the overload trip current according to the motor's full-load amperage rating, typically between 27 A and the motor nameplate value. Always follow the manufacturer's wiring diagram and local electrical codes.
Used in
Common applications for SQUARE DSQUARE D Products
3G Electric supplies SQUARE D non-reversing starters with electronic overloads. We supply genuine products with in-stock availability on common SKUs, technical documentation, commissioning support, and warranty service — worldwide.
