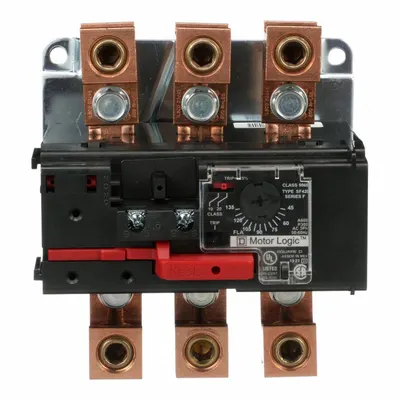

SQUARE D NEMA Overload Relay: Electronic Protection, 3 Poles, NEMA Size 4
The SQUARE D NEMA Overload Relay: Electronic Protection (MPN 9065SF420) is a three-phase, NEMA Size 4 electronic overload relay with a maximum voltage rating of 600V AC and an adjustable current range of 45 A to 135…
SKU 3G-OTH-41494
Local availability & support — Singapore
- Local office
- 20 Woodlands Link #09-05, Singapore 738733
- Phone
- +65 8878 8355
- Delivery
- Same-day or next-business-day delivery within Singapore for in-stock items; 7–14 days for factory-order parts from Europe.
- Payment
- Invoicing in SGD. PayNow, bank transfer, and corporate PO accepted.
- Ships to
- Singapore
Need installation or engineering help?
Ask a question
Product Description
The SQUARE D NEMA Overload Relay: Electronic Protection (MPN 9065SF420) is a three-phase, NEMA Size 4 electronic overload relay with a maximum voltage rating of 600V AC and an adjustable current range of 45 A to 135 A. It is compatible with the 9065 Motor Logic Solid State Overload Relays contactor series and does not require thermal units, as it is an electronic type overload relay.
Frequently Asked Questions
What is the SQUARE D 9065SF420 overload relay used for?
The SQUARE D 9065SF420 is an electronic overload relay used to protect three-phase motors from overcurrent and phase loss in industrial applications. It is designed for NEMA Size 4 contactors and provides adjustable protection from 45 A to 135 A without requiring thermal units.
What are the specifications of the SQUARE D 9065SF420 overload relay?
The SQUARE D 9065SF420 is a three-pole, NEMA Size 4 electronic overload relay with a maximum voltage rating of 600V AC and an adjustable current range of 45 A to 135 A. It is compatible with the 9065 Motor Logic Solid State Overload Relays contactor series and does not require thermal units.
Where to buy the SQUARE D 9065SF420 overload relay worldwide?
You can source the SQUARE D 9065SF420 overload relay through 3G Electric, a global industrial equipment distributor. We handle full logistics, customs clearance, and delivery to worldwide destinations, ensuring the relay reaches your facility reliably.
How to select the correct SQUARE D overload relay for a motor?
To select the correct SQUARE D overload relay, match the relay's NEMA size and current range to your motor's full-load amps and contactor frame. For the 9065SF420, ensure your motor's FLA falls within 45 A to 135 A and that your contactor is compatible with the 9065 Motor Logic series.
