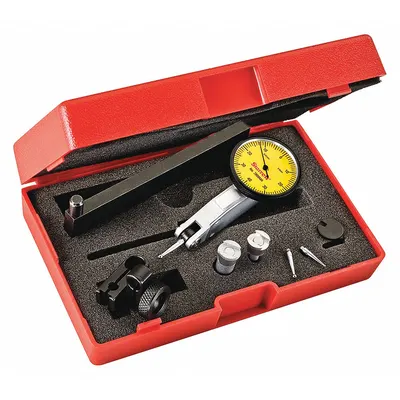

STARRETT Horizontal Dial Test Indicator: 0 mm to 0.8 mm, Horizontal, Metric
The STARRETT Horizontal Dial Test Indicator (MPN 3809MAC) is a metric dial test indicator with a horizontal and tilted-face style, offering a measurement range of 0 mm to 0.8 mm and a resolution of 0.01 mm. It is…
SKU 3G-OTH-408746
Also listed as: 3809 MAC · 3809-MAC
Local availability & support — Singapore
- Local office
- 20 Woodlands Link #09-05, Singapore 738733
- Phone
- +65 8878 8355
- Delivery
- Same-day or next-business-day delivery within Singapore for in-stock items; 7–14 days for factory-order parts from Europe.
- Payment
- Invoicing in SGD. PayNow, bank transfer, and corporate PO accepted.
- Ships to
- Singapore
Need installation or engineering help?
Ask a question
Product Description
The STARRETT Horizontal Dial Test Indicator (MPN 3809MAC) is a metric dial test indicator with a horizontal and tilted-face style, offering a measurement range of 0 mm to 0.8 mm and a resolution of 0.01 mm. It is designed for use with a Tool Post Holder, as specified by the manufacturer.
Frequently Asked Questions
What is the STARRETT Horizontal Dial Test Indicator used for?
The STARRETT Horizontal Dial Test Indicator is used for precision measurement of small displacements in machining and quality control. It is commonly mounted on a tool post holder to check runout, alignment, and surface variations on lathes or grinders, ensuring components meet tight tolerances.
What are the specifications of the STARRETT 3809MAC dial test indicator?
The STARRETT 3809MAC is a horizontal, metric dial test indicator with a measurement range of 0 mm to 0.8 mm and a resolution of 0.01 mm. It features a tilted-face style for easy reading and is designed for use with a tool post holder. The manufacturer part number is 3809MAC.
Where to buy the STARRETT 3809MAC dial test indicator worldwide?
You can source the STARRETT 3809MAC dial test indicator through 3G Electric, a global industrial equipment distributor. We handle full logistics, customs clearance, and delivery to worldwide destinations. Contact us for availability and lead time on this precision measurement tool.
How to install the STARRETT Horizontal Dial Test Indicator on a tool post?
To install the STARRETT Horizontal Dial Test Indicator, secure it in a compatible tool post holder using the mounting stem. Position the contact point against the workpiece, then zero the dial face. Ensure the indicator is aligned perpendicular to the surface for accurate readings. Follow standard shop practices for setup.
Used in
Common applications for STARRETTSTARRETT Products
3G Electric supplies STARRETT dial test indicators - horizontal & tilted-face styles. We supply genuine products with in-stock availability on common SKUs, technical documentation, commissioning support, and warranty service — worldwide.
