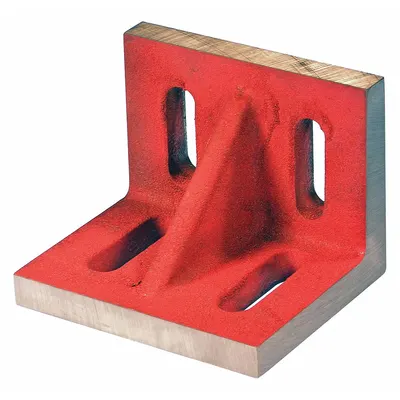

SUBURBAN Angle Plate: Cast Iron, 7 in L x 4 1/2 in W x 5 1/2 in H
The SUBURBAN Angle Plate is a slotted cast iron angle plate measuring 7 in L x 4 1/2 in W x 5 1/2 in H. It features a flatness of 0.002 in, parallelism of 0.002 in, and a hole style of (4) 11/16 in. This product is…
SKU 3G-OTH-183690
Also listed as: SAW070504 · SAW 070504
Local availability & support — Singapore
- Local office
- 20 Woodlands Link #09-05, Singapore 738733
- Phone
- +65 8878 8355
- Delivery
- Same-day or next-business-day delivery within Singapore for in-stock items; 7–14 days for factory-order parts from Europe.
- Payment
- Invoicing in SGD. PayNow, bank transfer, and corporate PO accepted.
- Ships to
- Singapore
Need installation or engineering help?
Ask a question
Product Description
The SUBURBAN Angle Plate is a slotted cast iron angle plate measuring 7 in L x 4 1/2 in W x 5 1/2 in H. It features a flatness of 0.002 in, parallelism of 0.002 in, and a hole style of (4) 11/16 in. This product is identified by manufacturer part number SAW-070504.
Frequently Asked Questions
What is a SUBURBAN Angle Plate used for?
A SUBURBAN Angle Plate is used in precision machining and inspection setups to hold workpieces at a right angle. It is commonly used in toolrooms, quality labs, and manufacturing for layout, drilling, and milling operations where flatness and squareness are critical.
What are the specifications of the SUBURBAN Angle Plate SAW-070504?
The SUBURBAN Angle Plate SAW-070504 is cast iron, 7 in L x 4 1/2 in W x 5 1/2 in H, with a flatness of 0.002 in and parallelism of 0.002 in. It has (4) 11/16 in holes. These specs ensure reliable accuracy for precision workholding and inspection.
Where to buy SUBURBAN Angle Plates worldwide?
You can source SUBURBAN Angle Plates worldwide through 3G Electric, a global industrial equipment distributor. We handle full logistics, customs clearance, and delivery to your location. Contact us for availability and lead time on the SAW-070504 or other models.
How to select a SUBURBAN Angle Plate for inspection work?
Select a SUBURBAN Angle Plate based on required flatness and parallelism tolerances, typically 0.002 in for precision work. Ensure the size accommodates your workpiece and that hole patterns match your clamping needs. SUBURBAN cast iron plates offer stability and vibration damping for accurate setups.
Used in
Common applications for SUBURBANSUBURBAN Products
3G Electric supplies SUBURBAN slotted cast iron angle plates. We supply genuine products with in-stock availability on common SKUs, technical documentation, commissioning support, and warranty service — worldwide.
