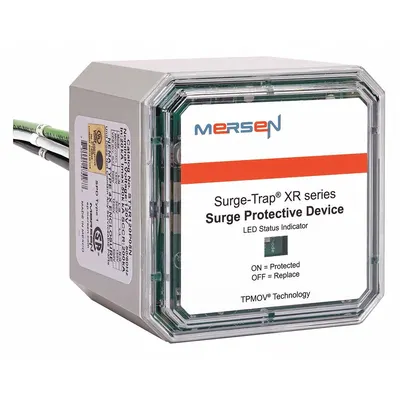

SURGE TRAP Surge Protection Device: Single Phase, 120V AC, 1200V (L-G)/600V (N-G)/700V (L-N)
The SURGE TRAP STXR120P05N is a single-phase Chase-Nipple External-Mount SPD with a polycarbonate enclosure. It operates at 120V AC with a maximum continuing operating voltage of 150 V AC and a voltage protection…
SKU 3G-OTH-22999
Local availability & support — Singapore
- Local office
- 20 Woodlands Link #09-05, Singapore 738733
- Phone
- +65 8878 8355
- Delivery
- Same-day or next-business-day delivery within Singapore for in-stock items; 7–14 days for factory-order parts from Europe.
- Payment
- Invoicing in SGD. PayNow, bank transfer, and corporate PO accepted.
- Ships to
- Singapore
Need installation or engineering help?
Ask a question
Product Description
The SURGE TRAP STXR120P05N is a single-phase Chase-Nipple External-Mount SPD with a polycarbonate enclosure. It operates at 120V AC with a maximum continuing operating voltage of 150 V AC and a voltage protection rating of 1200V (L-G). The device offers a maximum surge current per mode of 50kA.
Frequently Asked Questions
What is the SURGE TRAP STXR120P05N surge protection device used for?
The SURGE TRAP STXR120P05N is a single-phase Chase-Nipple External-Mount SPD designed to protect sensitive industrial equipment from voltage transients and surges. It is commonly applied in panelboards, control cabinets, and machinery operating on 120V AC systems, safeguarding against lightning-induced surges and switching transients.
What are the specifications of the SURGE TRAP STXR120P05N?
The SURGE TRAP STXR120P05N operates at 120V AC with a maximum continuing operating voltage of 150 V AC. It provides voltage protection ratings of 1200V (L-G), 600V (N-G), and 700V (L-N) in a 4X configuration. The device features a polycarbonate enclosure and delivers a maximum surge current per mode of 50kA.
Where to buy the SURGE TRAP STXR120P05N worldwide?
3G Electric supplies the SURGE TRAP STXR120P05N worldwide. As a global industrial equipment distributor established in 1990, we handle full logistics, customs clearance, and delivery to your site. Contact our team to source this SPD for your 120V AC surge protection needs.
How to install the SURGE TRAP STXR120P05N?
Install the SURGE TRAP STXR120P05N by mounting it externally via the chase nipple to a panel or enclosure knockout. Ensure the device is connected to a 120V AC circuit with proper grounding per local codes. Always de-energize the system before installation and follow the manufacturer's wiring diagram for L-G, N-G, and L-N connections.
