SURGE TRAP STXR240S05N Chase-Nipple External-Mount SPD, 120/240V AC, 50kA - Chase-Nipple External-Mount SPDs
SURGE TRAPChase-Nipple External-Mount SPDs

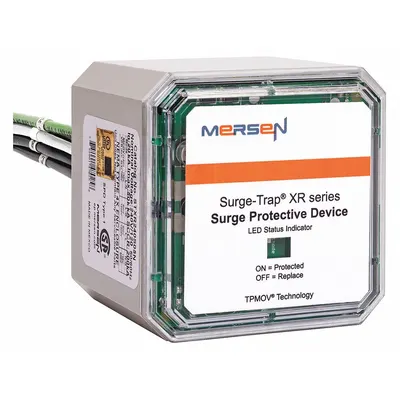

SURGE TRAP STXR240S05N Chase-Nipple External-Mount SPD, 120/240V AC, 50kA

The SURGE TRAP Surge Protection Device: Single Phase (SKU 3G-OTH-22936) is a Chase-Nipple External-Mount SPD with a polycarbonate enclosure. It operates at 120/240V AC with a Max. Continuing Operating Voltage of…

SKU 3G-OTH-22936

Brand
SURGE TRAP
Item
STXR240S05N Chase-Nipple External-Mount SPD, 120/240V AC, 50kA
Category
Chase-Nipple External-Mount SPDs
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineerMessage via Telegram
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Local availability & support — Singapore

Local office
20 Woodlands Link #09-05, Singapore 738733
Phone
+65 8878 8355
Delivery
Same-day or next-business-day delivery within Singapore for in-stock items; 7–14 days for factory-order parts from Europe.
Payment
Invoicing in SGD. PayNow, bank transfer, and corporate PO accepted.
Ships to
Singapore

Technical Specifications

SURGE TRAP
Manufacturer Part Number
STXR240S05N
Type
Polycarbonate, 4X, 50kA
AC
120/240V
Voltage
120/240V AC
Enclosure Material
Polycarbonate
Voltage Protection Rating
1800V (H-G, H-L, L-G, L-L)
Max. Surge Current per Mode
50kA
Max. Continuing Operating Voltage
150/300 V AC

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

SURGE TRAP Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The SURGE TRAP Surge Protection Device: Single Phase (SKU 3G-OTH-22936) is a Chase-Nipple External-Mount SPD with a polycarbonate enclosure. It operates at 120/240V AC with a Max. Continuing Operating Voltage of 150/300 V AC, a Voltage Protection Rating of 1800V (H-G, H-L, L-G, L-L), and a Max. Surge Current per Mode of 50kA.

Frequently Asked Questions

What is the SURGE TRAP STXR240S05N surge protection device used for?

The SURGE TRAP STXR240S05N is a single-phase surge protection device (SPD) used to protect electrical equipment from voltage spikes and transient surges in industrial and commercial applications. It is designed for external mounting via a chase nipple and operates at 120/240V AC with a 50kA surge current capacity.

What are the specifications of the SURGE TRAP STXR240S05N?

The SURGE TRAP STXR240S05N is a single-phase SPD with a voltage rating of 120/240V AC and a max. continuing operating voltage of 150/300 V AC. It has a voltage protection rating of 1800V (H-G, H-L, L-G, L-L), a max. surge current per mode of 50kA, and a polycarbonate enclosure rated NEMA 4X.

Where to buy the SURGE TRAP STXR240S05N worldwide?

You can source the SURGE TRAP STXR240S05N through 3G Electric, a global industrial equipment distributor. We handle full logistics, customs clearance, and delivery to worldwide destinations. Contact us for availability and lead time; we provide this SPD as part of our extensive sourcing network.

How to install the SURGE TRAP STXR240S05N?

Install the SURGE TRAP STXR240S05N by mounting it externally via the chase nipple into a suitable enclosure. Connect the line, neutral, and ground conductors per the wiring diagram, ensuring the device is properly grounded. Follow NEC and local codes; consult a qualified electrician for safe installation.

Used in

Common applications for SURGE TRAP
Manufacturing plants — SURGE TRAP STXR480Y05N for 480 V AC wye motor control centers
Water treatment facilities — SURGE TRAP STXR208Y05N for 208 V AC wye distribution panels
Commercial buildings — SURGE TRAP STXR240S05N for 120/240 V AC split-phase service entrances
Oil and gas facilities — SURGE TRAP STXR480D05 for 480 V AC delta pump systems
Data centers — SURGE TRAP STXR120P05N for 120 V AC single-phase equipment protection
HVAC systems — SURGE TRAP STXR240P05N for 240 V AC single-phase compressor units
