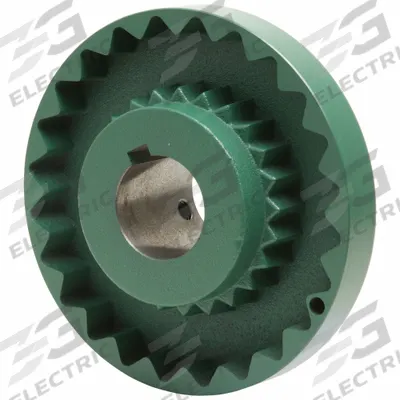

TB WOODS TB WOOD'S Sleeve Coupling Flange: 10 Coupling Size, 3,600 RPM Max Speed - Finished Bore Close-Coupled Flanges
TB WOODSFinished Bore Close-Coupled Flanges

TB WOODS TB WOOD'S Sleeve Coupling Flange: 10 Coupling Size, 3,600 RPM Max Speed

The TB WOOD'S Sleeve Coupling Flange, model 10S238, is a finished bore close-coupled flange designed for a 10 coupling size. It features a round keyed bore in inch dimensions, with a maximum speed of 3,600 RPM and an…

SKU 3G-OTH-134567

Brand
TB WOODS
Item
TB WOOD'S Sleeve Coupling Flange: 10 Coupling Size, 3,600 RPM Max Speed
Category
Finished Bore Close-Coupled Flanges
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

TB WOODS
Manufacturer Part Number
10S238
Type
Inch
Max Speed
3,600 RPM
Outside Dia
7 1/2 in
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

TB WOODS Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The TB WOOD'S Sleeve Coupling Flange, model 10S238, is a finished bore close-coupled flange designed for a 10 coupling size. It features a round keyed bore in inch dimensions, with a maximum speed of 3,600 RPM and an outside diameter of 7 1/2 inches. This component is manufactured by TB WOOD'S for industrial power transmission applications.

Frequently Asked Questions

What is the TB WOOD'S Sleeve Coupling Flange 10S238 used for?

The TB WOOD'S Sleeve Coupling Flange 10S238 is used in industrial power transmission systems to connect two shafts in a close-coupled arrangement. It is suitable for applications requiring a round keyed bore, inch dimensions, and speeds up to 3,600 RPM, such as pumps, conveyors, and compressors.

What are the specifications of the TB WOOD'S 10S238 coupling flange?

The TB WOOD'S 10S238 is a finished bore close-coupled flange with a 10 coupling size. It has a round keyed bore in inch dimensions, a maximum speed of 3,600 RPM, and an outside diameter of 7 1/2 inches. The manufacturer part number is 10S238, and it is designed for inch-type power transmission systems.

Where to buy the TB WOOD'S 10S238 coupling flange worldwide?

You can source the TB WOOD'S 10S238 coupling flange through 3G Electric, a global industrial equipment distributor. We handle full logistics, customs clearance, and delivery to worldwide destinations. Contact us for availability and lead time; we provide reliable sourcing for this TB WOOD'S component.

How to select the correct TB WOOD'S sleeve coupling flange for an application?

To select the correct TB WOOD'S sleeve coupling flange, match the coupling size, bore type (round keyed), and shaft dimensions to your system. Verify the maximum speed rating (3,600 RPM for model 10S238) and outside diameter (7 1/2 in) meet your torque and space requirements. Consult TB WOOD'S catalog for load ratings.

Used in

Common applications for TB WOODS
Pump drives — TB WOOD'S sleeve coupling flanges (e.g., 4J78) for connecting motor to pump shafts in water treatment plants.
Conveyor systems — TB WOOD'S jaw coupling hubs (e.g., L09925MM) for torque transmission in material handling equipment.
Compressor applications — TB WOOD'S tire coupling hubs (e.g., WE2H78) to accommodate misalignment in air compressor drives.
Industrial fans — TB WOOD'S spacer hubs and flanges (e.g., 6SCHMPB, 6SC44) for extended shaft connections in ventilation systems.
Machine tools — TB WOOD'S two-piece sleeve coupling inserts (e.g., model 5) for vibration dampening in spindle drives.
Mixers and agitators — TB WOOD'S finished bore close-coupled flanges for direct coupling in chemical processing equipment.

TB WOODS Products

3G Electric supplies TB WOODS finished bore close-coupled flanges. We supply genuine products with in-stock availability on common SKUs, technical documentation, commissioning support, and warranty service — worldwide.
