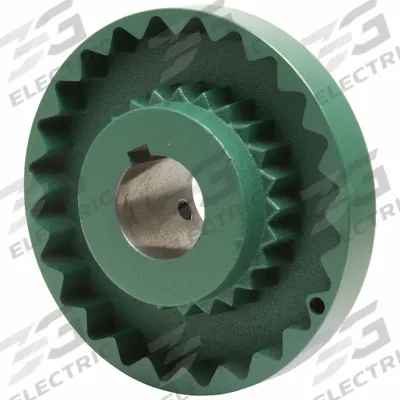

TB WOODS TB WOOD'S Sleeve Coupling Flange: 11 Coupling Size, 3,600 RPM Max Speed - Finished Bore Close-Coupled Flanges
TB WOODSFinished Bore Close-Coupled Flanges

TB WOODS TB WOOD'S Sleeve Coupling Flange: 11 Coupling Size, 3,600 RPM Max Speed

The TB WOOD'S Sleeve Coupling Flange, size 11, is a finished bore close-coupled flange designed for inch-dimension systems. It features a round keyed bore and has a maximum speed of 3,600 RPM with an outside diameter…

SKU 3G-OTH-134570

Brand
TB WOODS
Item
TB WOOD'S Sleeve Coupling Flange: 11 Coupling Size, 3,600 RPM Max Speed
Category
Finished Bore Close-Coupled Flanges
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

TB WOODS
Manufacturer Part Number
11S218
Type
Inch
Max Speed
3,600 RPM
Outside Dia
8 5/8 in
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

TB WOODS Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The TB WOOD'S Sleeve Coupling Flange, size 11, is a finished bore close-coupled flange designed for inch-dimension systems. It features a round keyed bore and has a maximum speed of 3,600 RPM with an outside diameter of 8 5/8 inches. This component is manufactured by TB WOOD'S under part number 11S218.

Frequently Asked Questions

What is the TB WOOD'S Sleeve Coupling Flange 11S218 used for?

The TB WOOD'S Sleeve Coupling Flange 11S218 is used to connect two shafts in industrial power transmission systems, particularly in inch-dimension applications. It is suitable for close-coupled setups where space is limited, such as pumps, compressors, and conveyors, handling speeds up to 3,600 RPM.

What are the specifications of the TB WOOD'S 11S218 coupling flange?

The TB WOOD'S 11S218 is a size 11 finished bore close-coupled flange with an inch-type round keyed bore. It has a maximum speed of 3,600 RPM and an outside diameter of 8 5/8 inches. This component is manufactured by TB WOOD'S and is designed for inch-dimension systems.

Where to buy TB WOOD'S coupling flange 11S218 worldwide?

You can source the TB WOOD'S coupling flange 11S218 through 3G Electric, a global industrial equipment distributor. We handle full logistics, customs clearance, and delivery to worldwide destinations. Contact us for availability and lead time; we provide reliable sourcing for this TB WOOD'S component.

How to select the correct TB WOOD'S sleeve coupling flange?

To select the correct TB WOOD'S sleeve coupling flange, match the coupling size (e.g., size 11) to your shaft diameter and ensure the bore type (round keyed) fits your keyway. Verify the maximum speed rating (3,600 RPM for model 11S218) and outside diameter (8 5/8 in) meet your system requirements. Consult TB WOOD'S documentation for torque and misalignment limits.

Used in

Common applications for TB WOODS
Pump drives — TB WOOD'S sleeve coupling flanges (e.g., 4J78) for connecting motor to pump shafts in water treatment plants.
Conveyor systems — TB WOOD'S jaw coupling hubs (e.g., L09925MM) for torque transmission in material handling equipment.
Compressor applications — TB WOOD'S tire coupling hubs (e.g., WE2H78) to accommodate misalignment in air compressor drives.
Industrial fans — TB WOOD'S spacer hubs and flanges (e.g., 6SCHMPB, 6SC44) for extended shaft connections in ventilation systems.
Machine tools — TB WOOD'S two-piece sleeve coupling inserts (e.g., model 5) for vibration dampening in spindle drives.
Mixers and agitators — TB WOOD'S finished bore close-coupled flanges for direct coupling in chemical processing equipment.
