TB WOODS TB WOOD'S Jaw Coupling Hub: L110 Coupling Size, 3 21/64 in Outside Dia - General Purpose Straight Jaw Coupling Hubs
TB WOODSGeneral Purpose Straight Jaw Coupling Hubs

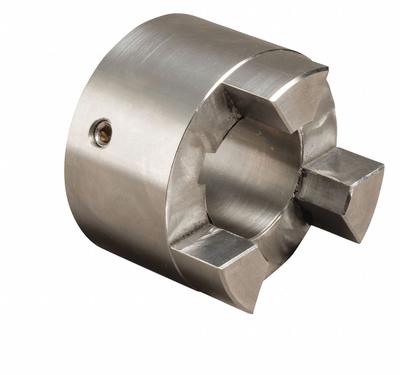

TB WOODS TB WOOD'S Jaw Coupling Hub: L110 Coupling Size, 3 21/64 in Outside Dia

The TB WOOD'S Jaw Coupling Hub is a general purpose straight jaw coupling hub in the L110 coupling size, designed for keyed shafts with a 3 21/64 inch outside diameter. This hub is rated for 3.6 hp when used with a…

SKU 3G-OTH-157185

Brand
TB WOODS
Item
TB WOOD'S Jaw Coupling Hub: L110 Coupling Size, 3 21/64 in Outside Dia
Category
General Purpose Straight Jaw Coupling Hubs
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

TB WOODS
Manufacturer Part Number
SS1101
Type
Inch, For Keyed Shaft Type
Outside Dia
3 21/64 in
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

TB WOODS Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The TB WOOD'S Jaw Coupling Hub is a general purpose straight jaw coupling hub in the L110 coupling size, designed for keyed shafts with a 3 21/64 inch outside diameter. This hub is rated for 3.6 hp when used with a Hytrel spider, as specified by the manufacturer. It is identified by manufacturer part number SS1101.

Used in

Common applications for TB WOODS
Pump drives — TB WOOD'S sleeve coupling flanges (e.g., 4J78) for connecting motor to pump shafts in water treatment plants.
Conveyor systems — TB WOOD'S jaw coupling hubs (e.g., L09925MM) for torque transmission in material handling equipment.
Compressor applications — TB WOOD'S tire coupling hubs (e.g., WE2H78) to accommodate misalignment in air compressor drives.
Industrial fans — TB WOOD'S spacer hubs and flanges (e.g., 6SCHMPB, 6SC44) for extended shaft connections in ventilation systems.
Machine tools — TB WOOD'S two-piece sleeve coupling inserts (e.g., model 5) for vibration dampening in spindle drives.
Mixers and agitators — TB WOOD'S finished bore close-coupled flanges for direct coupling in chemical processing equipment.

TB WOODS Products

3G Electric supplies TB WOODS general purpose straight jaw coupling hubs. We supply genuine products with in-stock availability on common SKUs, technical documentation, commissioning support, and warranty service — worldwide.
