TE-COSlotted-Drive Ball Plungers

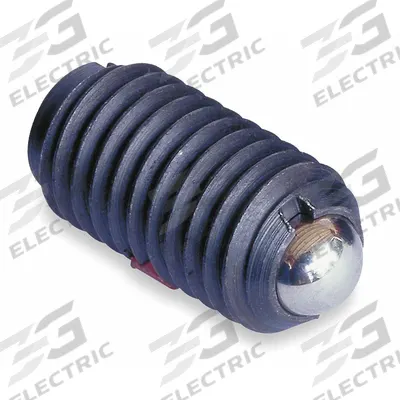

TE-CO Ball Plunger: Slotted, Steel Body w/ SS Ball, M20x2.5 Thread, 115 N to 240 N Nose Force

The TE-CO Ball Plunger: Slotted is a slotted-drive ball plunger with a steel body and stainless steel ball, featuring an M20x2.5 thread and a nose force range of 115 N to 240 N, supplied in a 5-pack (MPN 69017X01).

SKU 3G-OTH-180033

Brand

TE-CO

Item

Ball Plunger: Slotted, Steel Body w/ SS Ball, M20x2.5 Thread, 115 N to 240 N Nose Force

Technical Specifications

TE-CO

Manufacturer Part Number

69017X01

Type

Steel Body w/ SS Ball, M20x2.5 Thread, 5 PK

Nose Force

115 N to 240 N

View Full Spec Sheet

Technical Documents

No technical documents available for this product.

Request documentation →

Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.

Talk to an engineer

Ask a question

TE-CO Products

3G Electric (S) Pte. Ltd. — Singapore

Product Description

Frequently Asked Questions

What is a TE-CO ball plunger used for?

A TE-CO ball plunger is used in jigs, fixtures, and indexing applications to locate, position, or hold workpieces with a spring-loaded stainless steel ball. It is common in automotive and general manufacturing for detent, locking, and alignment functions where controlled nose force is required.

What are the specifications of the TE-CO ball plunger 69017X01?

The TE-CO ball plunger 69017X01 has an M20x2.5 thread, a steel body with a stainless steel ball, and a slotted drive. Nose force ranges from 115 N to 240 N. It is sold in a pack of 5. The manufacturer part number is 69017X01.

Where to buy TE-CO ball plungers worldwide?

You can source TE-CO ball plungers worldwide through 3G Electric, a global industrial equipment distributor. We handle full logistics, customs clearance, and delivery to your location. Contact us for availability and lead time on the TE-CO 69017X01 or other models.

How to install a TE-CO slotted ball plunger?

Install the TE-CO ball plunger by threading it into a tapped hole of matching M20x2.5 thread. Use a slotted screwdriver to adjust depth until the desired nose force is achieved. Ensure the ball moves freely and the body is seated securely. Follow standard fixture assembly practices for best results.
