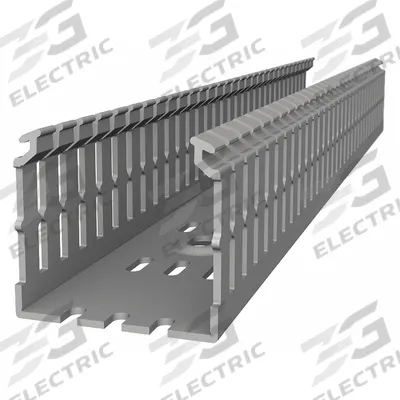

THOMAS & BETTS Wiring Duct: 1 in Nom Wd, 2.2 in Slot Ht, 3 in Nom Ht, 0.3 in Slot Wd, PVC - Screw-Mount Slotted Wiring Ducts & Snap-On Covers
THOMAS & BETTSScrew-Mount Slotted Wiring Ducts & Snap-On Covers

THOMAS & BETTS Wiring Duct: 1 in Nom Wd, 2.2 in Slot Ht, 3 in Nom Ht, 0.3 in Slot Wd, PVC

This THOMAS & BETTS Wiring Duct Base (SKU 53UH77, MPN TYD1X3WPG6) is a screw-mount slotted wiring duct with a wide slot wall type, designed for use with snap-on covers. It is made of gray PVC, with a nominal width of…

SKU 3G-OTH-56151

Brand
THOMAS & BETTS
Item
Wiring Duct: 1 in Nom Wd, 2.2 in Slot Ht, 3 in Nom Ht, 0.3 in Slot Wd, PVC
Category
Screw-Mount Slotted Wiring Ducts & Snap-On Covers
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

THOMAS & BETTS
Manufacturer Part Number
TYD1X3WPG6
Type
Wiring Duct Base
Lg
72 in
Nom Ht
3 in
Slot Ht
2.2 in
Slot Wd
0.3 in
Wall Type
Wide Slot
Item [MERCH]
Flush Cover Wiring Duct
Wall Type - Broad
Slotted
Color (Duct, Cover)
Gray
Compatable Cover Style
Snap-On
Mounting Style (Ducts)
Screw Mount
Material (Duct, Divider, Covers)
PVC
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

THOMAS & BETTS Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

This THOMAS & BETTS Wiring Duct Base (SKU 53UH77, MPN TYD1X3WPG6) is a screw-mount slotted wiring duct with a wide slot wall type, designed for use with snap-on covers. It is made of gray PVC, with a nominal width of 1 inch, nominal height of 3 inches, slot height of 2.2 inches, slot width of 0.3 inches, and a length of 72 inches. This flush cover wiring duct base is compatible with THOMAS & BETTS snap-on covers.

Frequently Asked Questions

What is the THOMAS & BETTS TYD1X3WPG6 wiring duct used for?

The THOMAS & BETTS TYD1X3WPG6 is a screw-mount slotted wiring duct base used to route and protect electrical wires in control panels, industrial enclosures, and automation systems. Its wide slot wall type and snap-on cover compatibility allow easy wire insertion and secure cable management in commercial and industrial installations.

What are the specifications of the THOMAS & BETTS TYD1X3WPG6 wiring duct?

The THOMAS & BETTS TYD1X3WPG6 wiring duct base has a nominal width of 1 inch, nominal height of 3 inches, slot height of 2.2 inches, slot width of 0.3 inches, and a length of 72 inches. It is made of gray PVC, features a wide slot wall type, and is designed for screw mounting with snap-on covers.

Where to buy THOMAS & BETTS wiring ducts worldwide?

3G Electric supplies THOMAS & BETTS wiring ducts like the TYD1X3WPG6 to customers worldwide. As a global industrial equipment distributor, we handle full logistics, customs clearance, and delivery to your location. Contact 3G Electric for pricing and lead time on this flush cover wiring duct base.

How to install a THOMAS & BETTS screw-mount wiring duct?

To install the THOMAS & BETTS TYD1X3WPG6 wiring duct base, first cut it to length using a fine-tooth saw. Secure the duct to the panel using screws through the mounting holes. Route wires into the wide slots, then snap on the compatible THOMAS & BETTS snap-on cover. Ensure the cover is fully seated for proper cable retention.

Used in

Common applications for THOMAS & BETTS
Industrial control panel wiring organization — Thomas & Betts TYD series wiring ducts and snap-on covers for cable management.
Power distribution cable splicing — Thomas & Betts open barrel compression connectors for 350 kcmil copper conductors.
Hazardous location conduit systems — Thomas & Betts liquid-tight fittings for Class III environments in textile mills.
Motor control center connections — Thomas & Betts motor lead disconnects for 4/0 AWG wire in switchgear.
Conduit pull points and access — Thomas & Betts C-type and LR-type outlet bodies for RMC and IMC installations.
Panel building with flush covers — Thomas & Betts slotted wiring ducts with white covers for aesthetic and functional cable routing.
