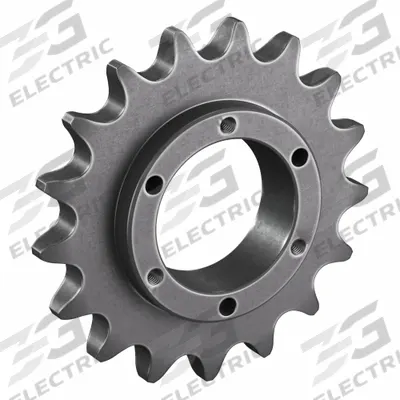

TRITAN Bushed Roller Chain Sprocket: For 100 Chain, 17 Teeth, 6.803 in Pitch Dia - Size 100 Bushed-Bore Roller Chain Sprockets
TRITANSize 100 Bushed-Bore Roller Chain Sprockets

TRITAN Bushed Roller Chain Sprocket: For 100 Chain, 17 Teeth, 6.803 in Pitch Dia

The TRITAN Bushed Roller Chain Sprocket (MPN 100SF17H) is a Size 100 bushed-bore roller chain sprocket designed for 100 chain. It features 17 teeth and a 6.803-inch pitch diameter, constructed from steel. This…

SKU 3G-OTH-126887

Brand
TRITAN
Item
Bushed Roller Chain Sprocket: For 100 Chain, 17 Teeth, 6.803 in Pitch Dia
Category
Size 100 Bushed-Bore Roller Chain Sprockets
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

TRITAN
Manufacturer Part Number
100SF17H
Type
Steel
Teeth
17
Pitch Dia
6.803 in
Required Bushing Series
SF
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

TRITAN Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The TRITAN Bushed Roller Chain Sprocket (MPN 100SF17H) is a Size 100 bushed-bore roller chain sprocket designed for 100 chain. It features 17 teeth and a 6.803-inch pitch diameter, constructed from steel. This sprocket requires an SF series bushing for installation.

Frequently Asked Questions

What is the TRITAN Bushed Roller Chain Sprocket 100SF17H used for?

The TRITAN 100SF17H bushed roller chain sprocket is used in power transmission systems to drive 100-series roller chain. It is common in conveyors, material handling, and industrial machinery where reliable torque transfer and precise chain engagement are required.

What are the specifications of the TRITAN 100SF17H sprocket?

The TRITAN 100SF17H is a steel bushed-bore sprocket for 100 chain, with 17 teeth and a 6.803-inch pitch diameter. It requires an SF series bushing for mounting. The manufacturer part number is 100SF17H.

Where to buy the TRITAN 100SF17H sprocket worldwide?

3G Electric supplies the TRITAN 100SF17H bushed roller chain sprocket worldwide. As a global industrial solutions provider, we handle full logistics, customs clearance, and delivery to your site. Contact us for availability and lead time.

How to install the TRITAN 100SF17H bushed sprocket?

To install the TRITAN 100SF17H, first select the correct SF series bushing for your shaft diameter. Insert the bushing into the sprocket bore, align keyways, and tighten the bushing screws evenly. Follow standard bushed-sprocket installation practices for proper fit and alignment.
