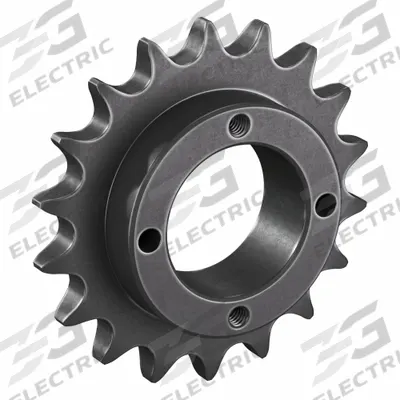

TSUBAKI Sprocket: For 50 Chain, 18 Teeth, 3.599 in Pitch Dia, 3.92 in Outside Dia - Size 50 Bushed-Bore Roller Chain Sprockets
TSUBAKISize 50 Bushed-Bore Roller Chain Sprockets

TSUBAKI Sprocket: For 50 Chain, 18 Teeth, 3.599 in Pitch Dia, 3.92 in Outside Dia

The TSUBAKI Sprocket is a Size 50 bushed-bore roller chain sprocket designed for 50 chain. It features 18 teeth, a 3.599-inch pitch diameter, and a 3.92-inch outside diameter, constructed from steel. This sprocket…

SKU 3G-OTH-127028

Brand
TSUBAKI
Item
Sprocket: For 50 Chain, 18 Teeth, 3.599 in Pitch Dia, 3.92 in Outside Dia
Category
Size 50 Bushed-Bore Roller Chain Sprockets
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

TSUBAKI
Manufacturer Part Number
50H18
Type
Steel
Teeth
18
Pitch Dia
3.599 in
Outside Dia
3.92 in
Required Bushing Series
H1
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

TSUBAKI Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The TSUBAKI Sprocket is a Size 50 bushed-bore roller chain sprocket designed for 50 chain. It features 18 teeth, a 3.599-inch pitch diameter, and a 3.92-inch outside diameter, constructed from steel. This sprocket requires an H1 bushing series and is identified by manufacturer part number 50H18.

Frequently Asked Questions

What is the TSUBAKI 50H18 sprocket used for?

The TSUBAKI 50H18 sprocket is used in power transmission systems with Size 50 roller chain. It is commonly applied in industrial machinery, conveyors, and material handling equipment where reliable torque transfer and precise chain engagement are required.

What are the specifications of the TSUBAKI 50H18 sprocket?

The TSUBAKI 50H18 sprocket has 18 teeth, a 3.599-inch pitch diameter, and a 3.92-inch outside diameter. It is made of steel and requires an H1 bushing series. The manufacturer part number is 50H18, and it is designed for Size 50 roller chain.

Where to buy the TSUBAKI 50H18 sprocket worldwide?

3G Electric supplies the TSUBAKI 50H18 sprocket worldwide. As a global industrial equipment distributor, we handle full logistics, customs clearance, and delivery to your location. Contact us for availability and lead time on this TSUBAKI sprocket.

How to select the correct bushing for the TSUBAKI 50H18 sprocket?

The TSUBAKI 50H18 sprocket requires an H1 bushing series. To select the correct bushing, match the sprocket bore size to your shaft diameter using the H1 bushing range. Always verify the bushing part number with TSUBAKI specifications to ensure proper fit and torque transmission.
