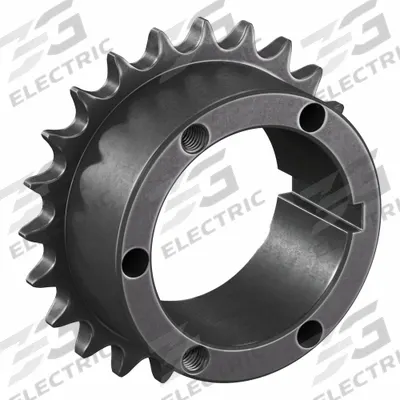

TSUBAKI Sprocket: For 50 Chain, 23 Teeth, 4.59 in Pitch Dia, 4.922 in Outside Dia - Size 50 Bushed-Bore Roller Chain Sprockets
TSUBAKISize 50 Bushed-Bore Roller Chain Sprockets

TSUBAKI Sprocket: For 50 Chain, 23 Teeth, 4.59 in Pitch Dia, 4.922 in Outside Dia

The TSUBAKI Sprocket is a Size 50 bushed-bore roller chain sprocket designed for 50 chain, with 23 teeth, a pitch diameter of 4.59 inches, and an outside diameter of 4.922 inches, made of steel. This component is…

SKU 3G-OTH-134079

Brand
TSUBAKI
Item
Sprocket: For 50 Chain, 23 Teeth, 4.59 in Pitch Dia, 4.922 in Outside Dia
Category
Size 50 Bushed-Bore Roller Chain Sprockets
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

TSUBAKI
Manufacturer Part Number
50Q23
Type
Steel
Teeth
23
Pitch Dia
4.59 in
Outside Dia
4.922 in
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

TSUBAKI Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The TSUBAKI Sprocket is a Size 50 bushed-bore roller chain sprocket designed for 50 chain, with 23 teeth, a pitch diameter of 4.59 inches, and an outside diameter of 4.922 inches, made of steel. This component is identified by manufacturer part number 50Q23 and is suitable for use in industrial power transmission systems.

Frequently Asked Questions

What is the TSUBAKI 50Q23 sprocket used for?

The TSUBAKI 50Q23 sprocket is used in industrial power transmission systems to drive roller chain, converting rotary motion into linear force. It is commonly applied in conveyors, packaging machinery, and material handling equipment where reliable, high-torque chain drive is required.

What are the specifications of the TSUBAKI 50Q23 sprocket?

The TSUBAKI 50Q23 is a Size 50 bushed-bore roller chain sprocket with 23 teeth, a pitch diameter of 4.59 in, and an outside diameter of 4.922 in. It is made of steel and is designed for 50 chain. The manufacturer part number is 50Q23.

Where to buy the TSUBAKI 50Q23 sprocket worldwide?

3G Electric supplies the TSUBAKI 50Q23 sprocket to customers worldwide. As a global industrial solutions provider, we handle full logistics, customs clearance, and delivery to your site. Contact us for pricing and lead time on this genuine TSUBAKI power transmission component.

How to select the right TSUBAKI sprocket for a 50 chain?

To select the correct TSUBAKI sprocket for 50 chain, match the chain size (50), tooth count, and bore type to your shaft and load requirements. The 50Q23 offers 23 teeth with a bushed bore for easy mounting. Always verify pitch diameter and outside diameter fit your drive layout.

Used in

Common applications for TSUBAKI
Material handling conveyors — TSUBAKI C2080H connecting links for heavy-duty chain systems
Packaging machinery — TSUBAKI size 60 roller chains with 60NEPCL connecting links for coated chain applications
Automotive assembly lines — TSUBAKI 80NPSK1CL attachment links for positioning fixtures on single-strand chains
Food processing equipment — TSUBAKI nickel-plated chains and sprockets (e.g., 50BTL48) for washdown environments
General power transmission — TSUBAKI PL1G keyless bushings for shaft mounting without keyways in drive systems
Conveyor drive systems — TSUBAKI 40BTL24 sprockets for size 40 chain in light-to-medium load applications
