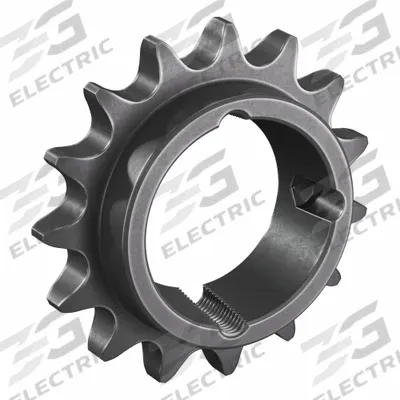

TSUBAKI Sprocket: For 60 Chain, 15 Teeth, 3.608 in Pitch Dia, 3.979 in Outside Dia - Size 60 Bushed-Bore Roller Chain Sprockets
TSUBAKISize 60 Bushed-Bore Roller Chain Sprockets

TSUBAKI Sprocket: For 60 Chain, 15 Teeth, 3.608 in Pitch Dia, 3.979 in Outside Dia

The TSUBAKI Sprocket is a Size 60 bushed-bore roller chain sprocket designed for 60 chain. It features 15 teeth, a 3.608-inch pitch diameter, and a 3.979-inch outside diameter, constructed from steel. This sprocket…

SKU 3G-OTH-124598

Brand
TSUBAKI
Item
Sprocket: For 60 Chain, 15 Teeth, 3.608 in Pitch Dia, 3.979 in Outside Dia
Category
Size 60 Bushed-Bore Roller Chain Sprockets
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

TSUBAKI
Manufacturer Part Number
60BTL15
Type
Steel
Teeth
15
Pitch Dia
3.608 in
Outside Dia
3.979 in
Required Bushing Series
1610
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

TSUBAKI Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The TSUBAKI Sprocket is a Size 60 bushed-bore roller chain sprocket designed for 60 chain. It features 15 teeth, a 3.608-inch pitch diameter, and a 3.979-inch outside diameter, constructed from steel. This sprocket requires a 1610 bushing series and is identified by manufacturer part number 60BTL15.

Frequently Asked Questions

What is the TSUBAKI 60BTL15 sprocket used for?

The TSUBAKI 60BTL15 is a Size 60 bushed-bore roller chain sprocket used in power transmission systems to drive 60-series roller chain. It is common in conveyors, packaging machinery, and industrial drives where reliable torque transfer and precise chain engagement are required.

What are the specifications of the TSUBAKI 60BTL15 sprocket?

The TSUBAKI 60BTL15 sprocket has 15 teeth, a 3.608-inch pitch diameter, and a 3.979-inch outside diameter. It is made of steel and requires a 1610 bushing series. The manufacturer part number is 60BTL15, and it is designed for 60 chain.

Where to buy the TSUBAKI 60BTL15 sprocket worldwide?

3G Electric supplies the TSUBAKI 60BTL15 sprocket to customers worldwide. As a global industrial solutions provider, we handle full logistics, customs clearance, and delivery to your location. Contact us for pricing and lead time on this genuine TSUBAKI component.

How to select the correct bushing for a TSUBAKI 60BTL15 sprocket?

The TSUBAKI 60BTL15 sprocket requires a 1610 bushing series. When selecting a bushing, match the bore size to your shaft diameter and ensure the bushing keyway aligns with your shaft key. Always consult the TSUBAKI catalog for proper bushing installation torque and fit specifications.
