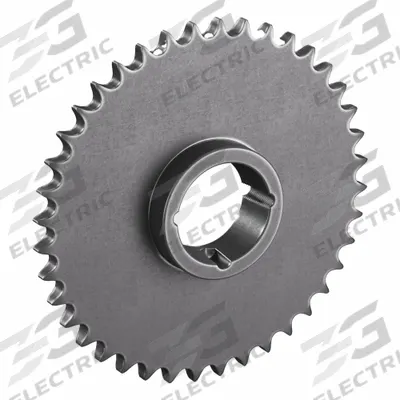

TSUBAKI Sprocket: For 60 Chain, 40 Teeth, 9.559 in Pitch Dia, 9.98 in Outside Dia - Size 60 Bushed-Bore Roller Chain Sprockets
TSUBAKISize 60 Bushed-Bore Roller Chain Sprockets

TSUBAKI Sprocket: For 60 Chain, 40 Teeth, 9.559 in Pitch Dia, 9.98 in Outside Dia

The TSUBAKI Sprocket is a Size 60 bushed-bore roller chain sprocket designed for ANSI 60 chain. This steel sprocket features 40 teeth, a 9.559-inch pitch diameter, and a 9.98-inch outside diameter, requiring a 2012…

SKU 3G-OTH-126126

Brand
TSUBAKI
Item
Sprocket: For 60 Chain, 40 Teeth, 9.559 in Pitch Dia, 9.98 in Outside Dia
Category
Size 60 Bushed-Bore Roller Chain Sprockets
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

TSUBAKI
Manufacturer Part Number
60BTL40
Type
Steel, ANSI
Teeth
40
Pitch Dia
9.559 in
Outside Dia
9.98 in
Required Bushing Series
2012
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

TSUBAKI Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The TSUBAKI Sprocket is a Size 60 bushed-bore roller chain sprocket designed for ANSI 60 chain. This steel sprocket features 40 teeth, a 9.559-inch pitch diameter, and a 9.98-inch outside diameter, requiring a 2012 series bushing (sold separately). It is identified by manufacturer part number 60BTL40.

Frequently Asked Questions

What is the TSUBAKI 60BTL40 sprocket used for?

The TSUBAKI 60BTL40 sprocket is used in power transmission systems with ANSI 60 roller chain. It is commonly applied in conveyors, packaging machinery, and industrial drives where reliable torque transfer and precise chain engagement are required.

What are the specifications of the TSUBAKI 60BTL40 sprocket?

The TSUBAKI 60BTL40 is a steel sprocket for ANSI 60 chain with 40 teeth, a 9.559-inch pitch diameter, and a 9.98-inch outside diameter. It requires a 2012 series bushing (sold separately). The manufacturer part number is 60BTL40.

Where to buy the TSUBAKI 60BTL40 sprocket worldwide?

3G Electric supplies the TSUBAKI 60BTL40 sprocket worldwide. As a global industrial equipment distributor, we handle full logistics, customs clearance, and delivery to your location. Contact us for availability and lead time.

How to select the correct bushing for the TSUBAKI 60BTL40 sprocket?

The TSUBAKI 60BTL40 sprocket requires a 2012 series bushing. Select a bushing with the appropriate bore size for your shaft. Ensure the bushing is properly seated and tightened to manufacturer torque specifications for secure mounting and alignment.
